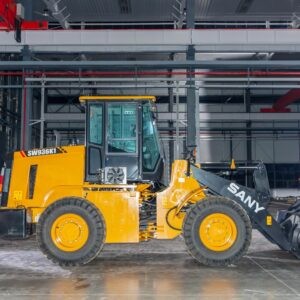

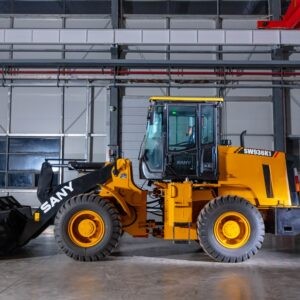

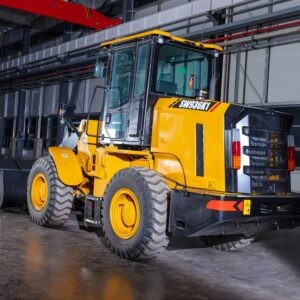

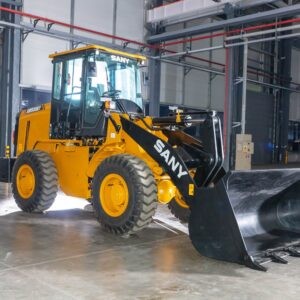

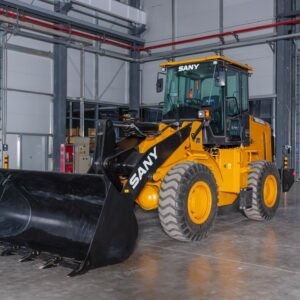

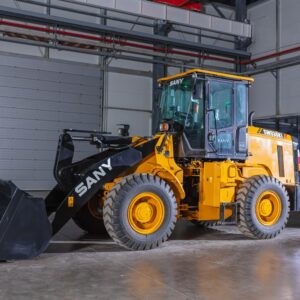

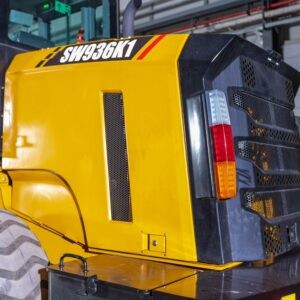

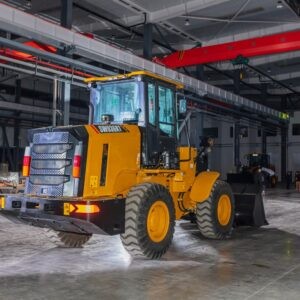

SW936K1
3 TON
Wheel Loader
Specifications
| Technical data | |
| Maximum lifting height | 4950±50 |
| Hinged shaft height at maximum lifting position | 4028±50 |
| Discharging height | 3130±50 |
| Transportation height | 465 |
| Digging depth | 120 |
| Unloading distance | 1160±50 |
| Height of complete vehicle | 3350±50 |
| Ground clearance | 345± 20 |
| Length of complete vehicle (with bucket) | 7380±100 |
| Distance from hinge center to rear wheel center | 1425 |
| Wheel base | 2850 |
| Rear suspension distance | 1946±30 |
| WEIGHT | |
| Total weight | 3000 kg |
| ENGINE | |
| Model | CumminsQSB5.9-C130-30 |
| Rated power | 97 kW/2200 rpm |
| Travel speed | 0~37 km/h |
| OUTPUT | |
| Fuel tank | 170 L |
| Engine coolant | 25 L |
| Hydraulic oil tank | 100 L |
Benefits & Features
Reliable, High-productivity & Smart
Rated power: 97 kW@2200 rpm | Operating weight: 11,000 kg | Rated payload: 3,500 kg
Highlights
Engineered for greater reliability & productivity,
the SW936K1 is built of 4-ton class frame, leading
hydraulic & braking technology.
Comfortable Cabin
Intelligent Management
Full-hydraulic Braking system
4-ton class Frame
Cummins Engine
The customized engine is powerful，reliable，saving energy and easy to maintain
Planetary transmission
This customized transmission is equipped with large capacity torque
converter and it can improve the travelling speed by 3% and the traction force meet 107KN with high efficiency.
