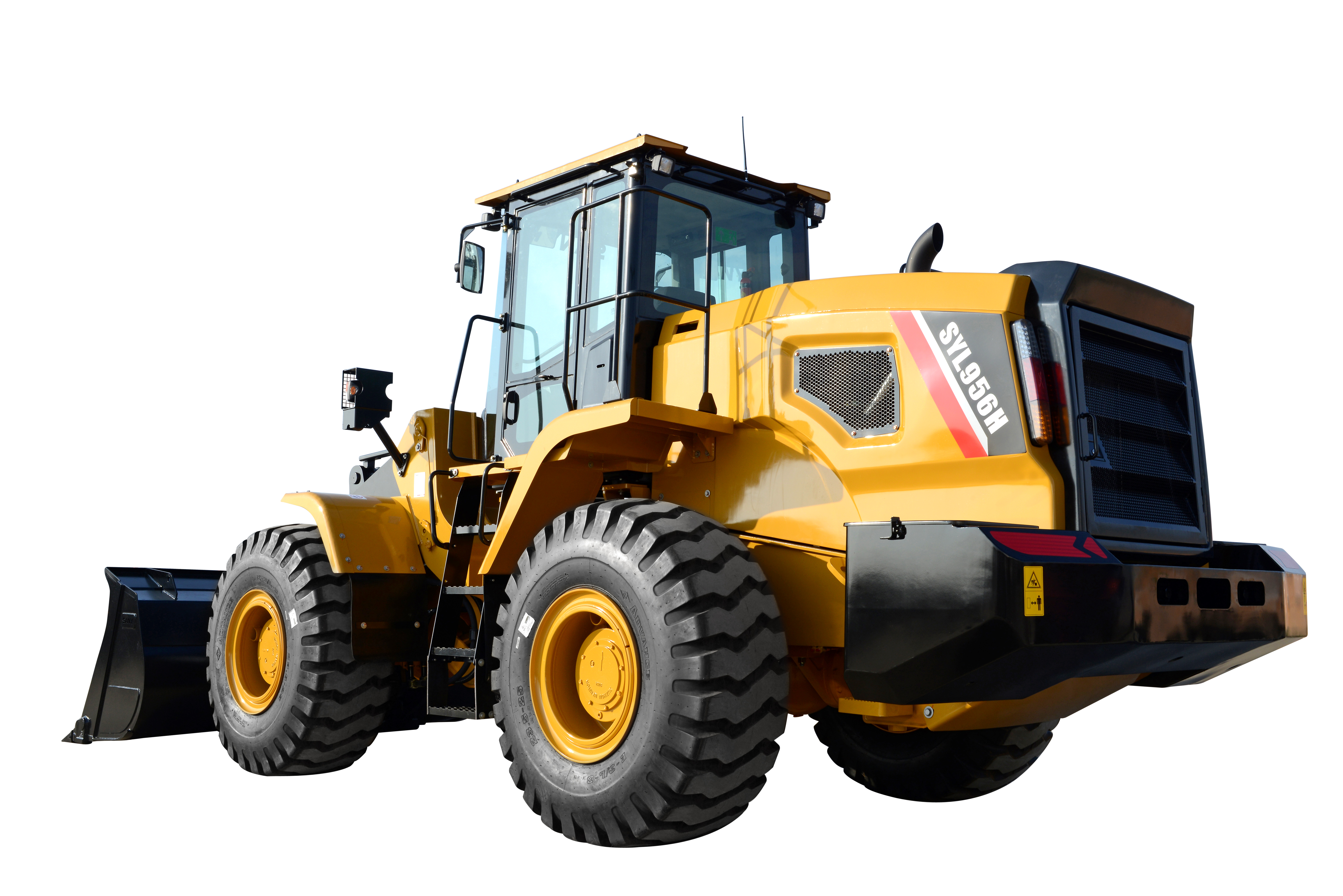

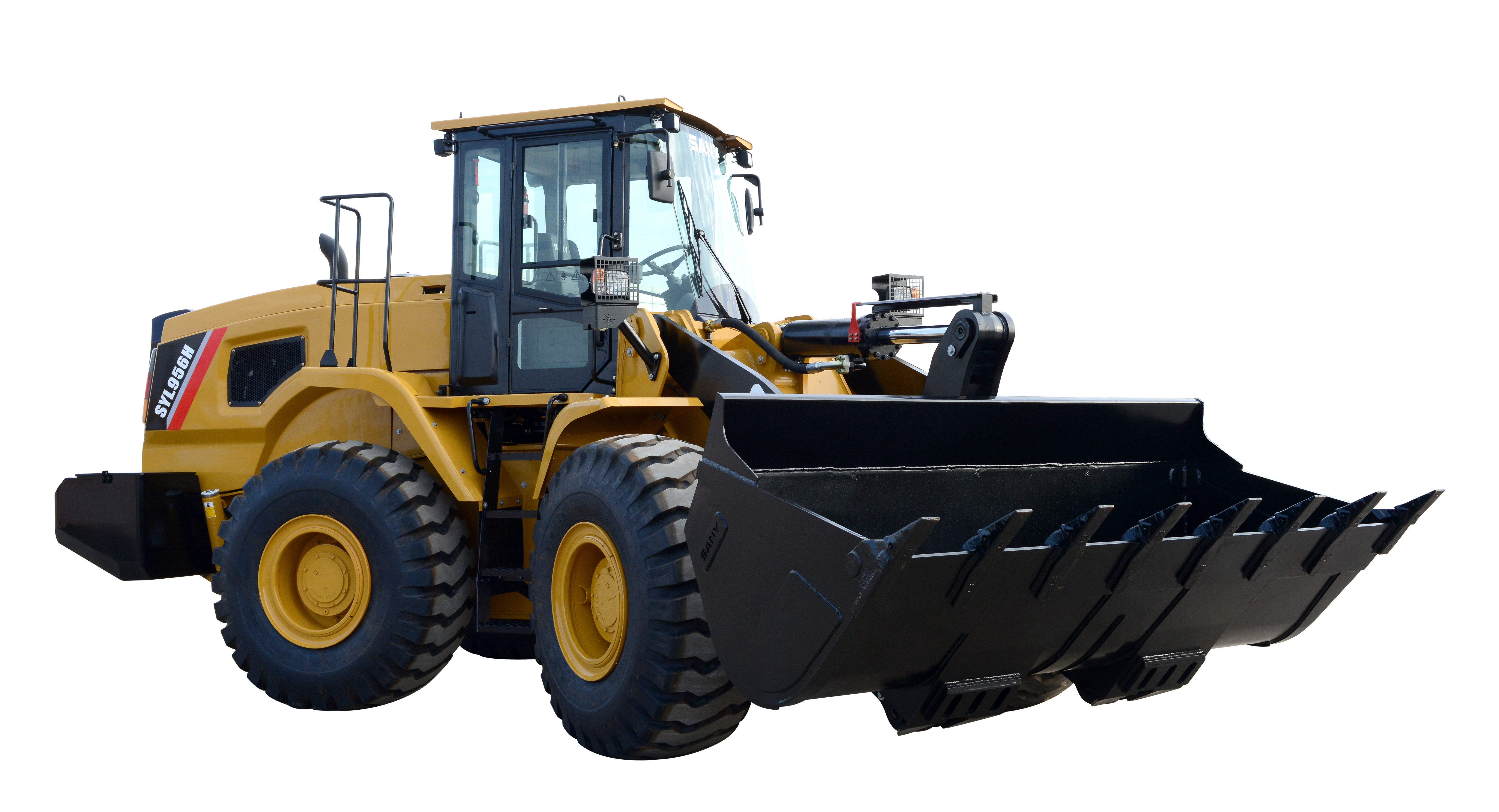

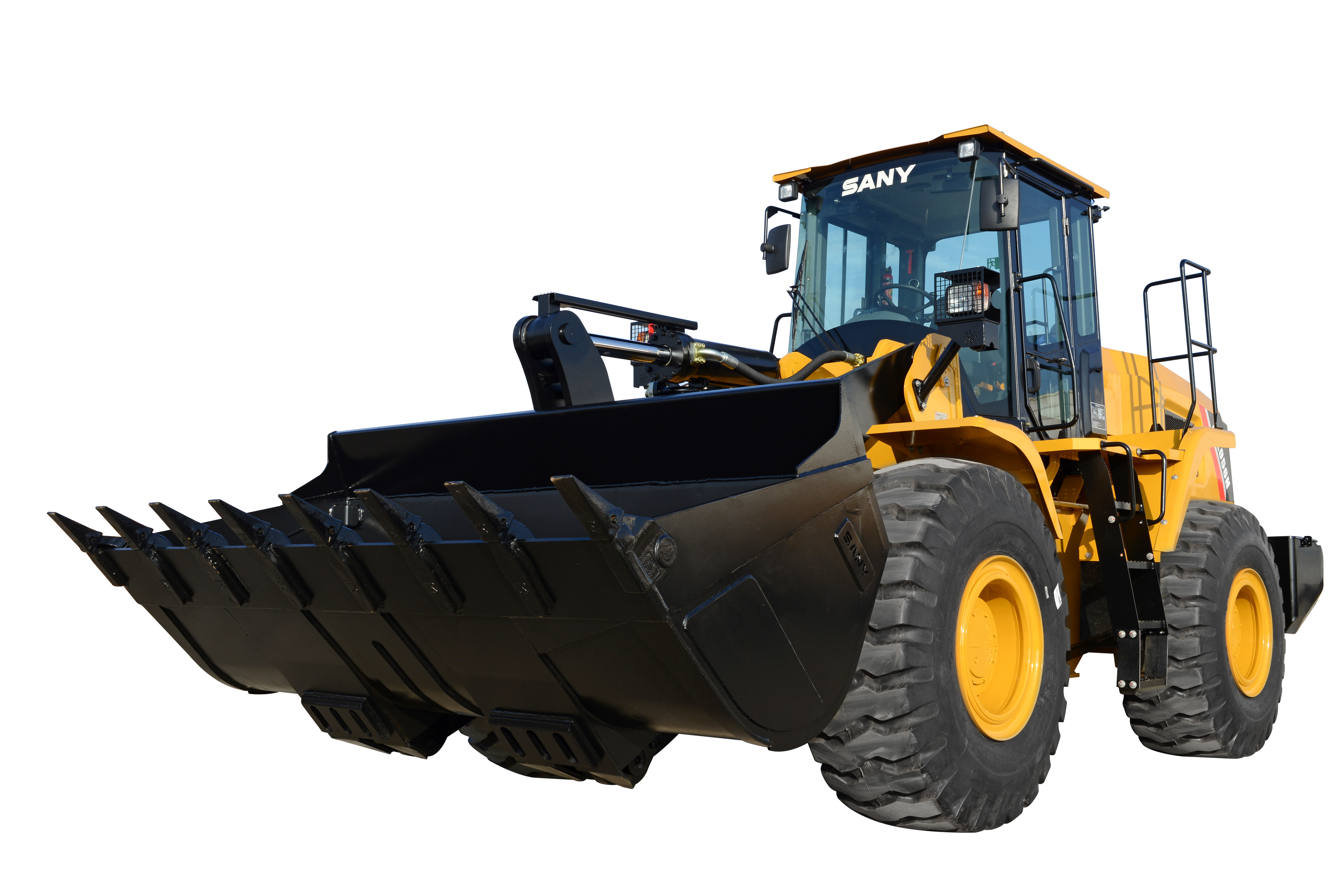

SYL956H5
5 TON
Wheel Loader
  • Rated Load
    5000kg
  • Rated Power
    164KW/2200rpm
  • Bucket Capacity
    2.7-4.0m³
Specifications
Technical data
Maximum lifting height  5410±50
Hinged shaft height at  maximum lifting position  4132±50
Discharging height  3118±50
Transportation height  460
Digging depth   30
Unloading distance  1140±50
Height of complete  vehicle  3501±50
Ground clearance 432±10
Length of complete  vehicle (with bucket) 8016±50
Distance from hinge center  to rear wheel center 1600
Wheel base 3200
Rear suspension distance 2229±50


WEIGHT
Total weight 5000 kg


ENGINE
Model Cummins QSL8.9-C220-Ⅲ
Rated power 164 kW/2200 rpm
Travel speed 7.1\40 km/h

OUTPUT
Slewing speed 8 rpm
Fuel tank 300 L
Engine coolant 65 L
Engine oil 220 L
Benefits & Features

Optimum Efficiency

Cummins QSL8.9 Engine: ensures strong power, high efficiency and large displacement.

Multipoint fuel injection allows for immediate throttle response, enhanced fuel efficiency and reduced noise.

Meets Tier 3 emission standard.

Customized DANA Transmission: The DANA axis-shift transmission with electronic control system is used for automatic shifting, maximum efficiency and 10k-hour service life.

F/R handle and fingertips control realize ease of switch between left and right hands.

Solenoid valve + logic control achieve a much smoother shifting and faster response.

High-Pressure Load-Sensitive Hydraulic System: perfect match between speed and power, 10%-15% energy saving.

The 25MPa high-pressure hydraulic system and main valve of large displacement achieve higher breakout and lifting force.

Superior Reliability: Braking System: The full hydraulic electronic control parking brake and dual circuit service brake combine maneuverability and reliability, ensuring a safe operating experience.

Reinforced structural components are adopted for heavy-duty mining applications with a service life reaching 10k hours.

High Fuel Efficiency: The Cummins QSL8.9 engine reduces the fuel consumption of the wheel loader.

The high-pressure load-sensitive hydraulic system and leading hydraulic components distribute the flow on demand, reducing the unnecessary energy loss and saving energy by up to 10%.





Comfortable Operating Experience

Spacious & Quiet Cab

Generous legroom and visibility, 15% larger than other Chinese wheel loaders.

Reduced noise with 78 dB(A) noise level, creating a super comfortable space for the operators.

Ergonomic Design

Large and soft wrist rest with the height easy to adjust.

Enough legroom, comfortable pedal design, and the angle adjustable steering.
