| Technical data | |
| Overall length | 6125 mm |
| Overall width | 2220 mm |
| Overall height | 2760 mm |
| Upper width | 2040 mm |
| Track length | 2820 mm |
| Track gauge | 1750 mm |
| Tail swing radius | 2195 mm |
| Min.Ground Clearance | 380 mm |
| Track shoe width | 450 mm |
| Boom length | 3720 mm |
| Bucket arm length | 1620 mm |
| Bucket capacity | 0.28 m³ |
| WEIGHT | |
| Total weight | 7280 kg |
| WORKING RANGE | |
| Max. digging height | 7390 mm |
| Max. unloading height | 4450 mm |
| Max. digging depth | 3840 mm |
| Max. digging distance | 6505 mm |
| Min. slewing radius | 1940 mm |
| Max. height at min. slewing radius | 5560 mm |
| ENGINE | |
| Model | Isuzu 4LE2 |
| Rated power | 43 kW/2100 rpm |
| Travel speed | 2.4\5.12 km/h |
| OUTPUT | |
| Slewing speed | 10.5 rpm |
| Fuel tank | 150 L |
| Engine coolant | 12 L |
| Engine oil | 10 L |
| Hydraulic oil tank | 120 L |
HIGH EFFICIENCY AND PRECISE CONTROL
Powerful Engine

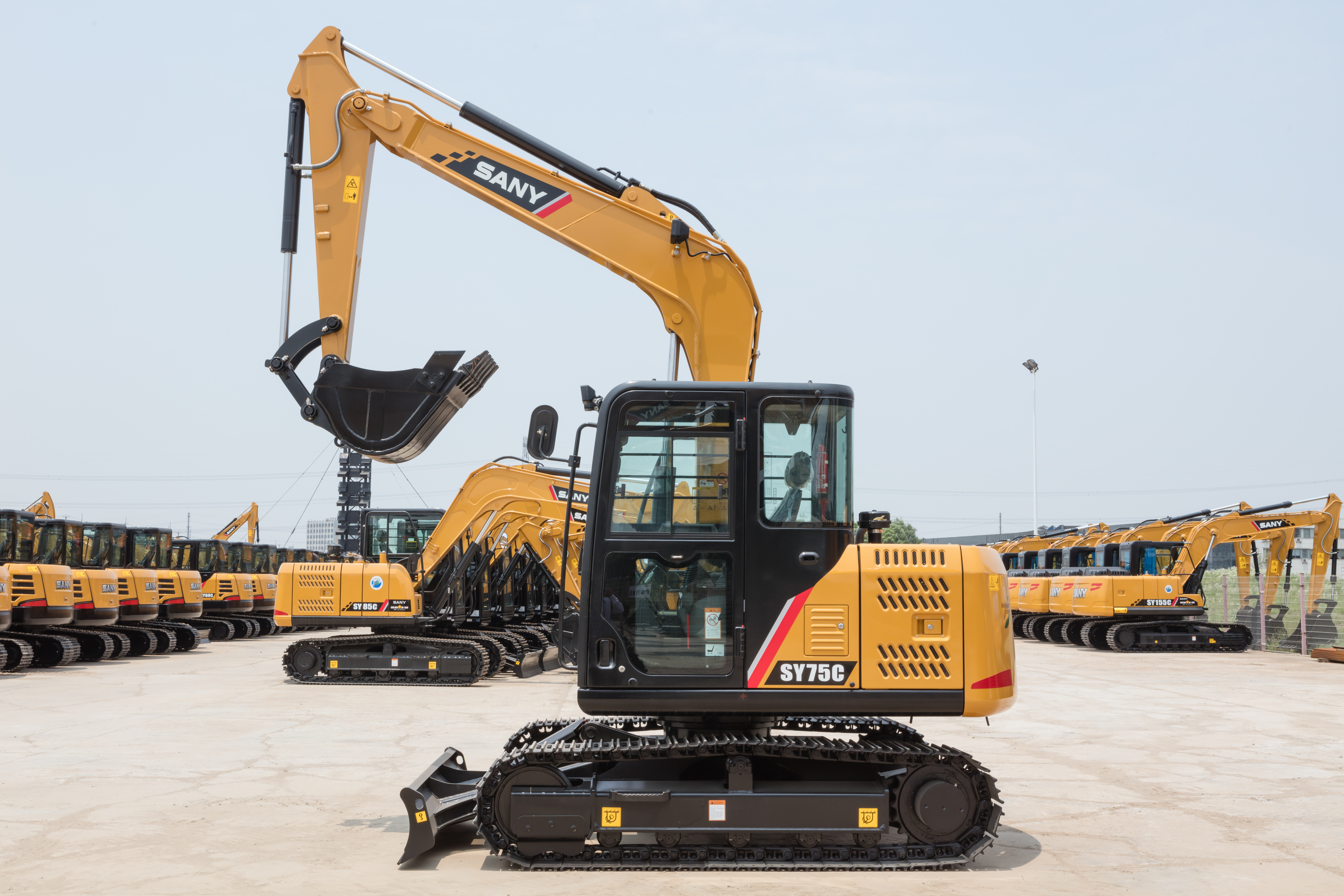

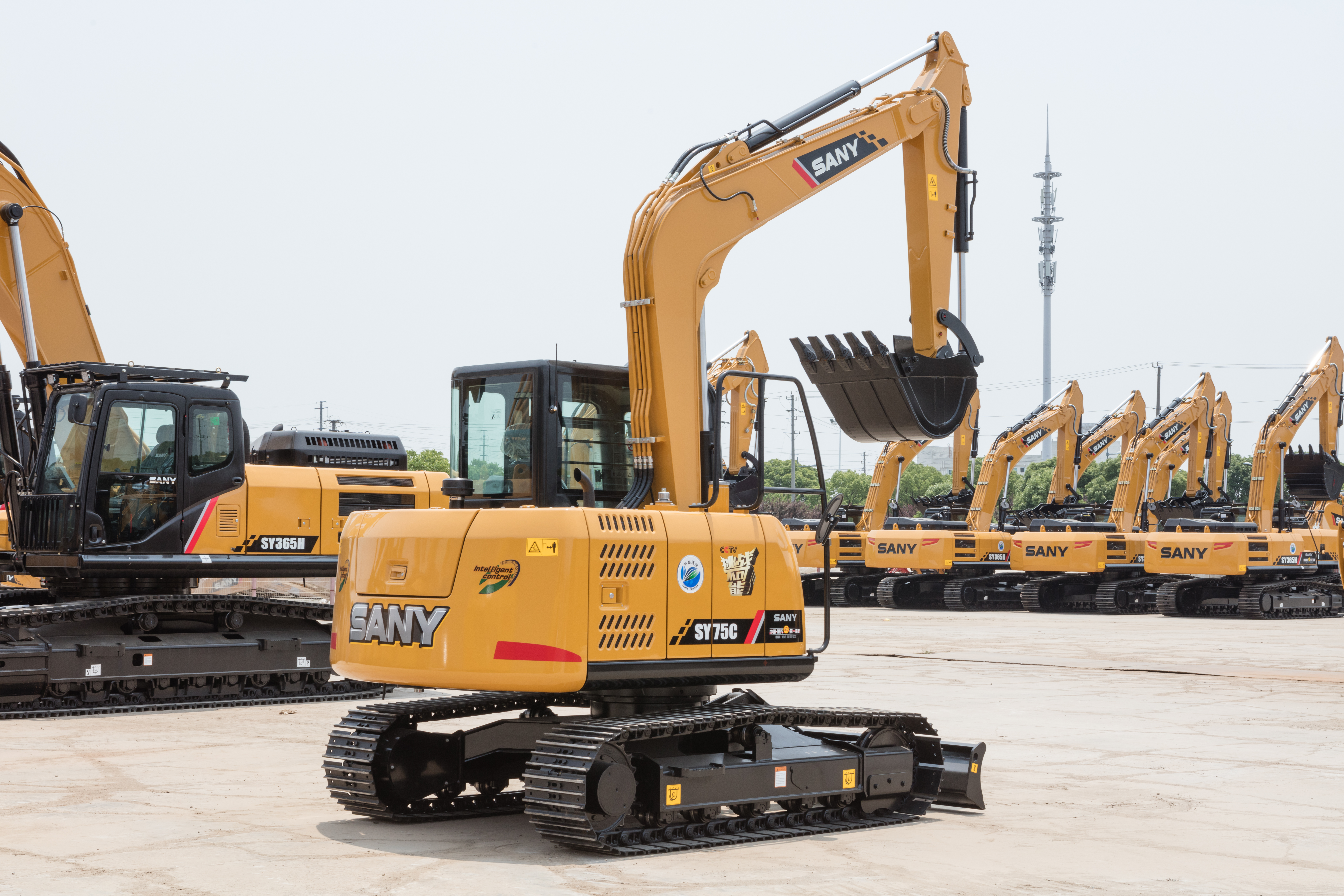

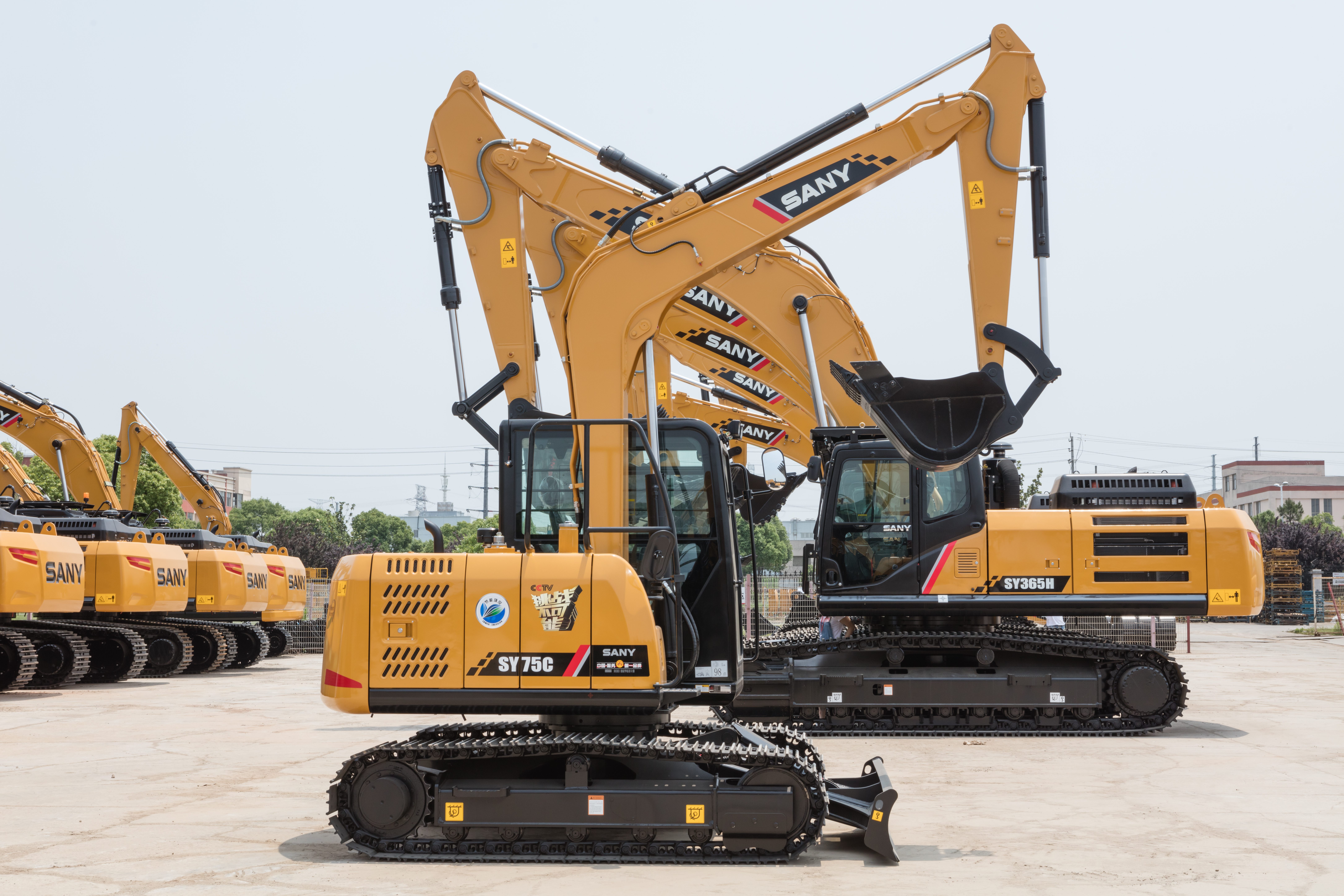

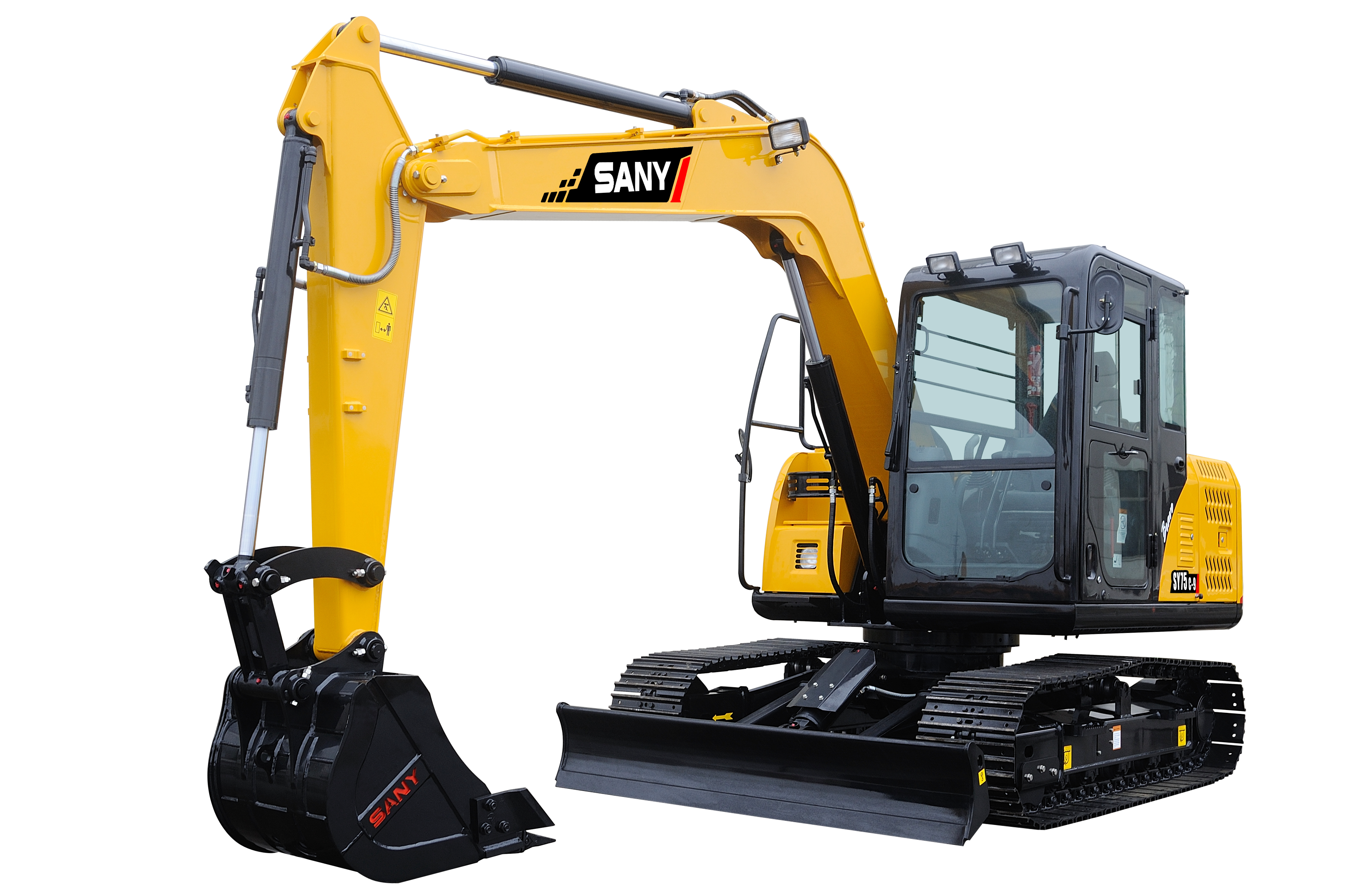

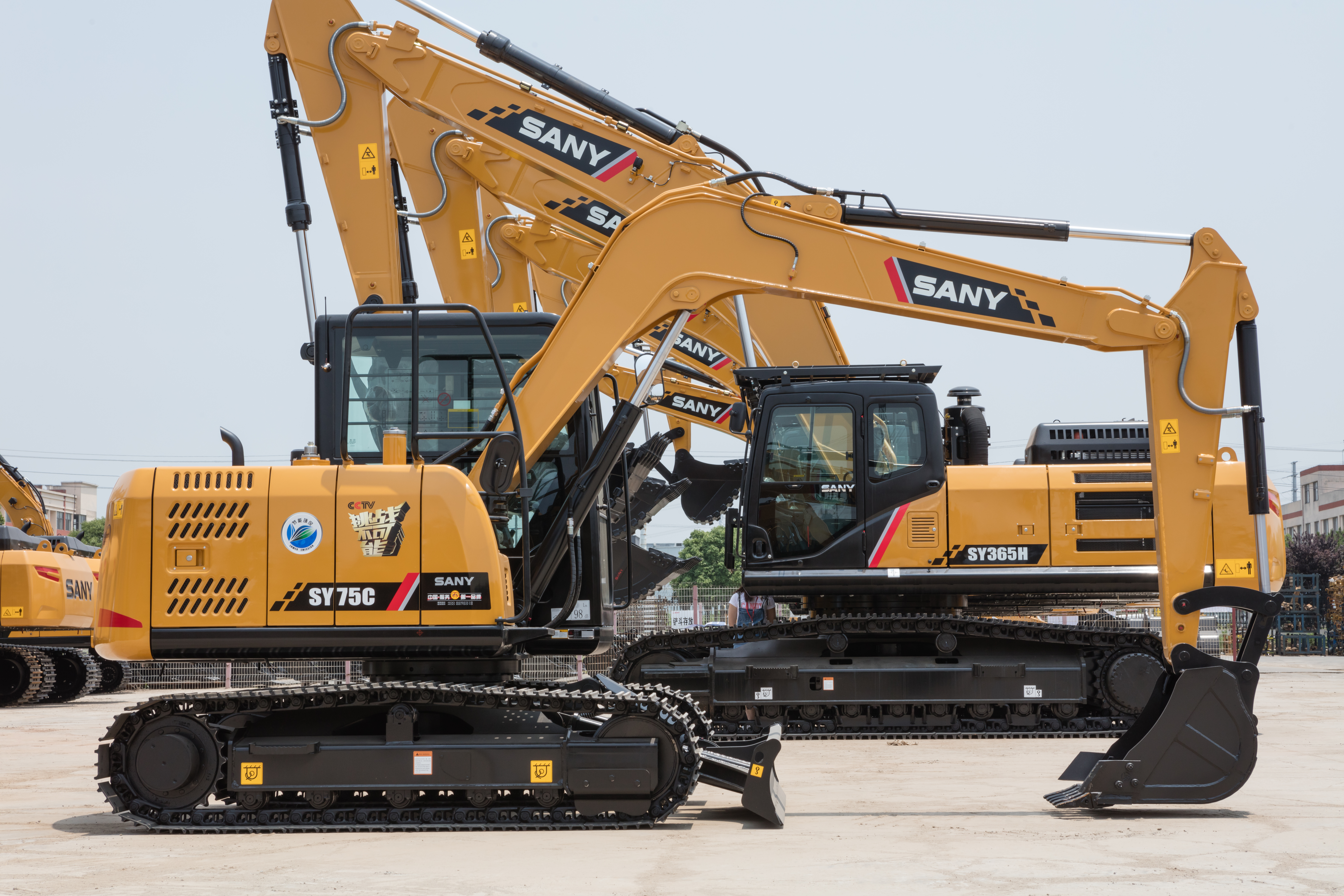

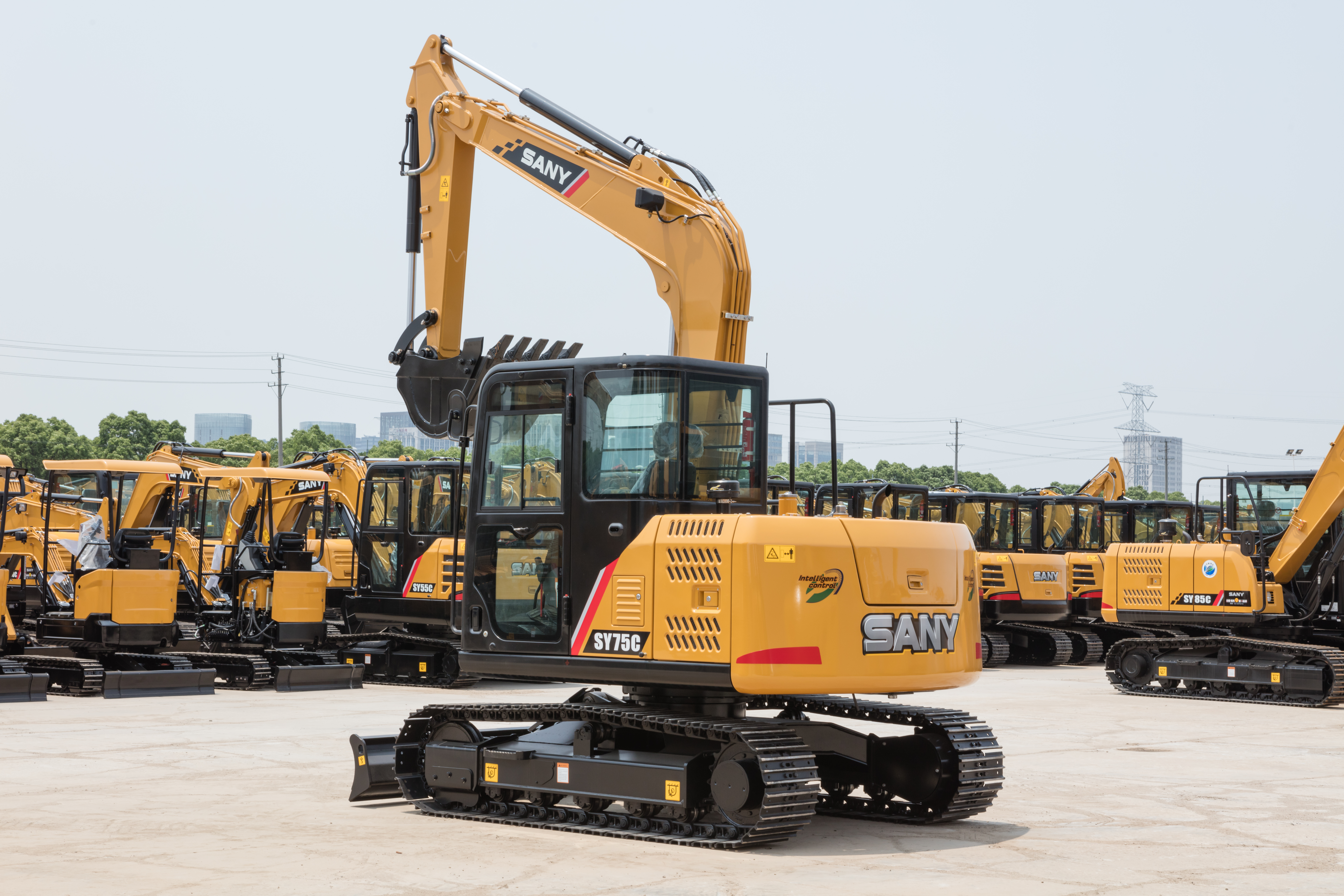

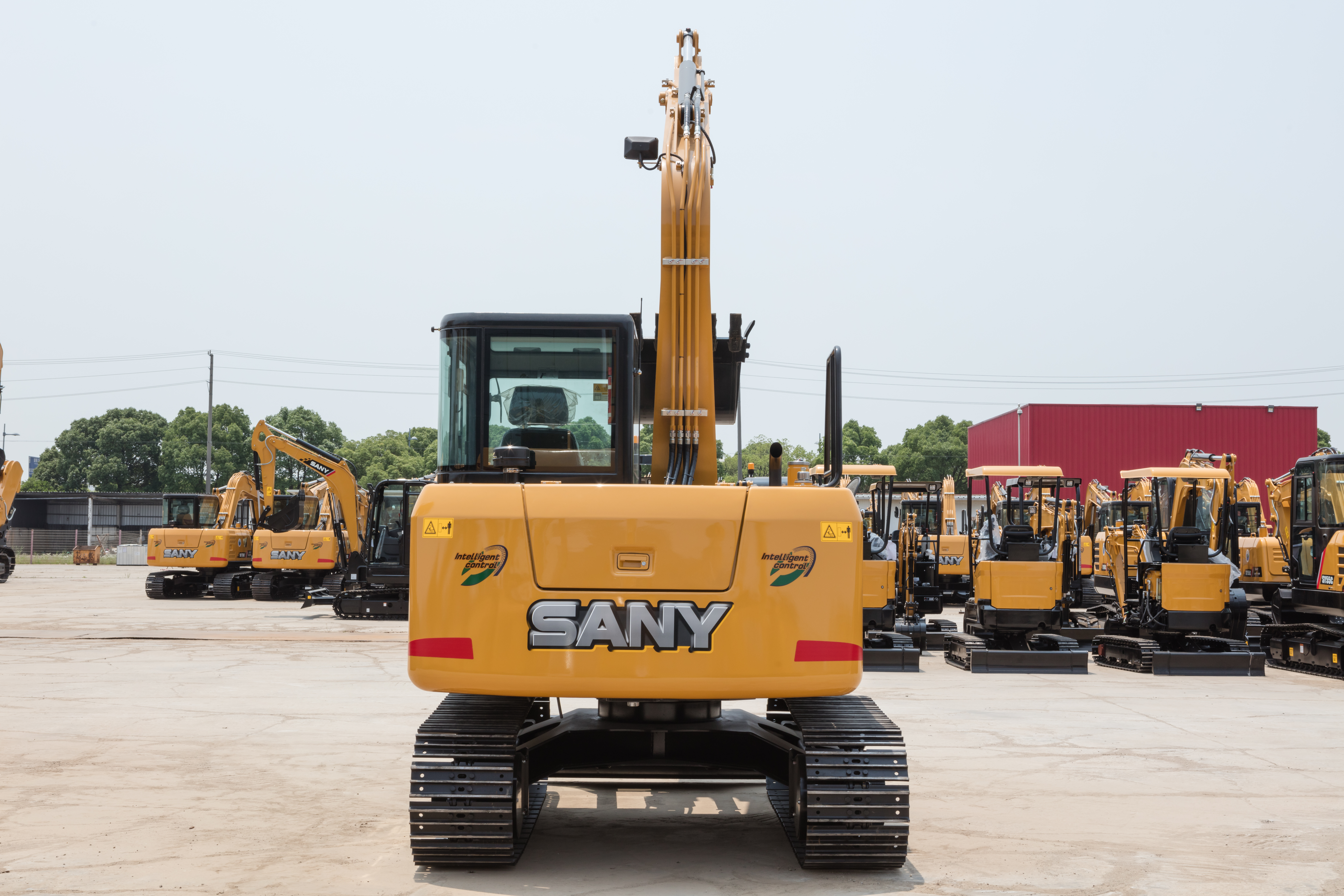

The 43/2100 kW/rpm engine of the SY75C, equipped with four cylinders and four-stroke direct injection, provides the strong power for the machine.
Faster working speed
Faster speed
Configured with a quick return line to the arm oil cylinder circuit, the operation efficiency is greatly improved. The advanced main valve provides excellent coordinating and leveling performance by combining operations on the one hand and increasing the moving speed of the arm and bucket on the other.
Load-sensitivity flow distribution system
Consisting of variable single pumps that provide a constant overall power, the load-sensitivity flow distribution system is of high stability and excellent micro-operation performance, offering a perfect and meticulous process.
Improved dozer blade
Equipped with an innovative dozer blade that has an increased magnitude of moving up and down, the machine is suitable for complex operating conditions, such as road construction or burying pipelines or cables. With a special shape and wider plate, the soil could be prevented from falling behind, improving the efficiency of digging, landfilling, and leveling.
ENERGY-SAVING DESIGN
With exhaust emissions in line with EPA interim Tier 3 emission standards, the engine is environmentally friendly.
High reliability
With an advanced travel motor and optimized flow distribution system, the machine can work more efficiently by traveling at high or low speed as per different ground surface conditions and working areas.
auto-deceleration system
With the auto-deceleration system, the fuel consumption is reduced by 5–10 percent. The engine speed is lowered automatically to zero after only 3 seconds when the machine operation is stopped and resumed to the set rpm within only 0.1 seconds after the operation is started.
Reinforced boom, bucket, and high-strength track frame
Besides the thicker side plates, the ear plates have also been redesigned to reduce the stress at the bending. The durability of the bucket is also greatly extended by using quality anti-wear plates with a thickness of 33 percent.
USER FRIENDLY DESIGN
Spacious cab
Larger windows in the newly designed spacious cab provide you with a wider view, and the movable roof hatch gives the cab better ventilation and more lights. The control levers and joysticks designed and arranged according to human engineering are all within the reach of the operators, making the operation more easily done and labor-saving. With an excellent sealing ring, the cab is free from outer noise, effectively relieving the fatigue of operators.
