3.80 Tonnes Excavator

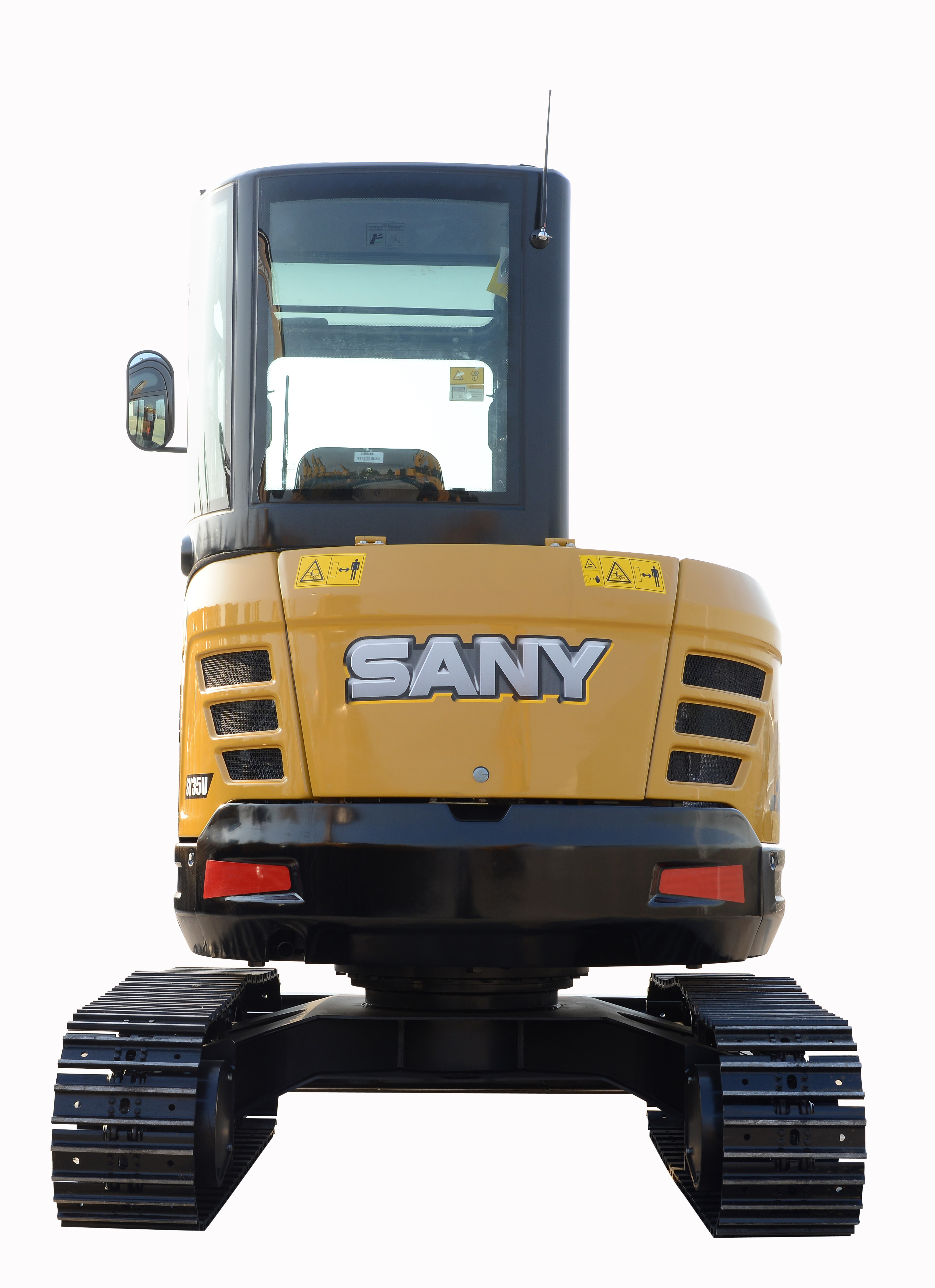

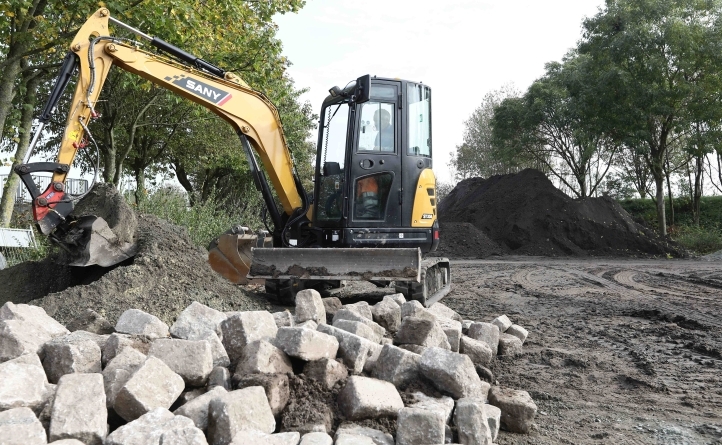

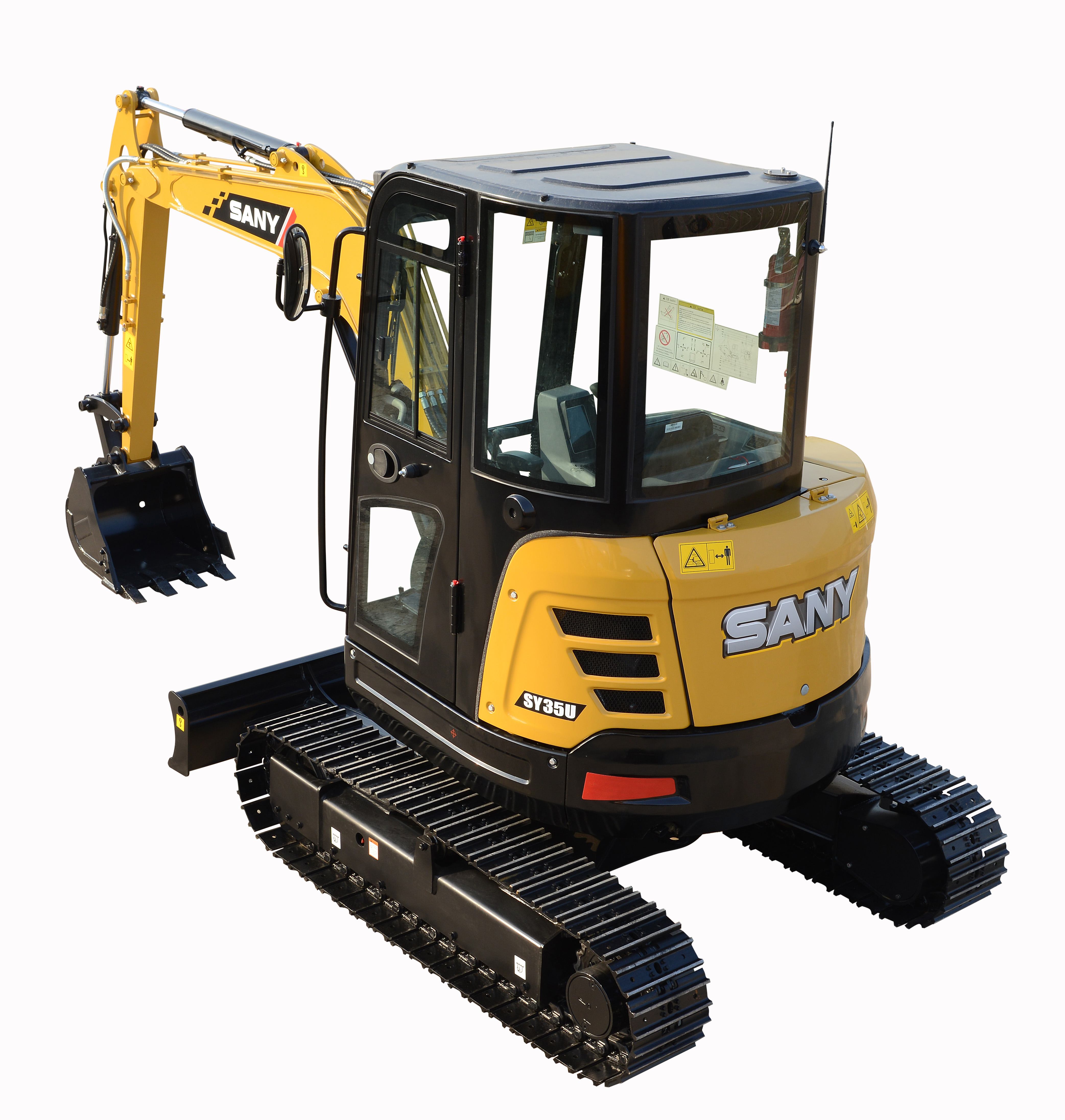

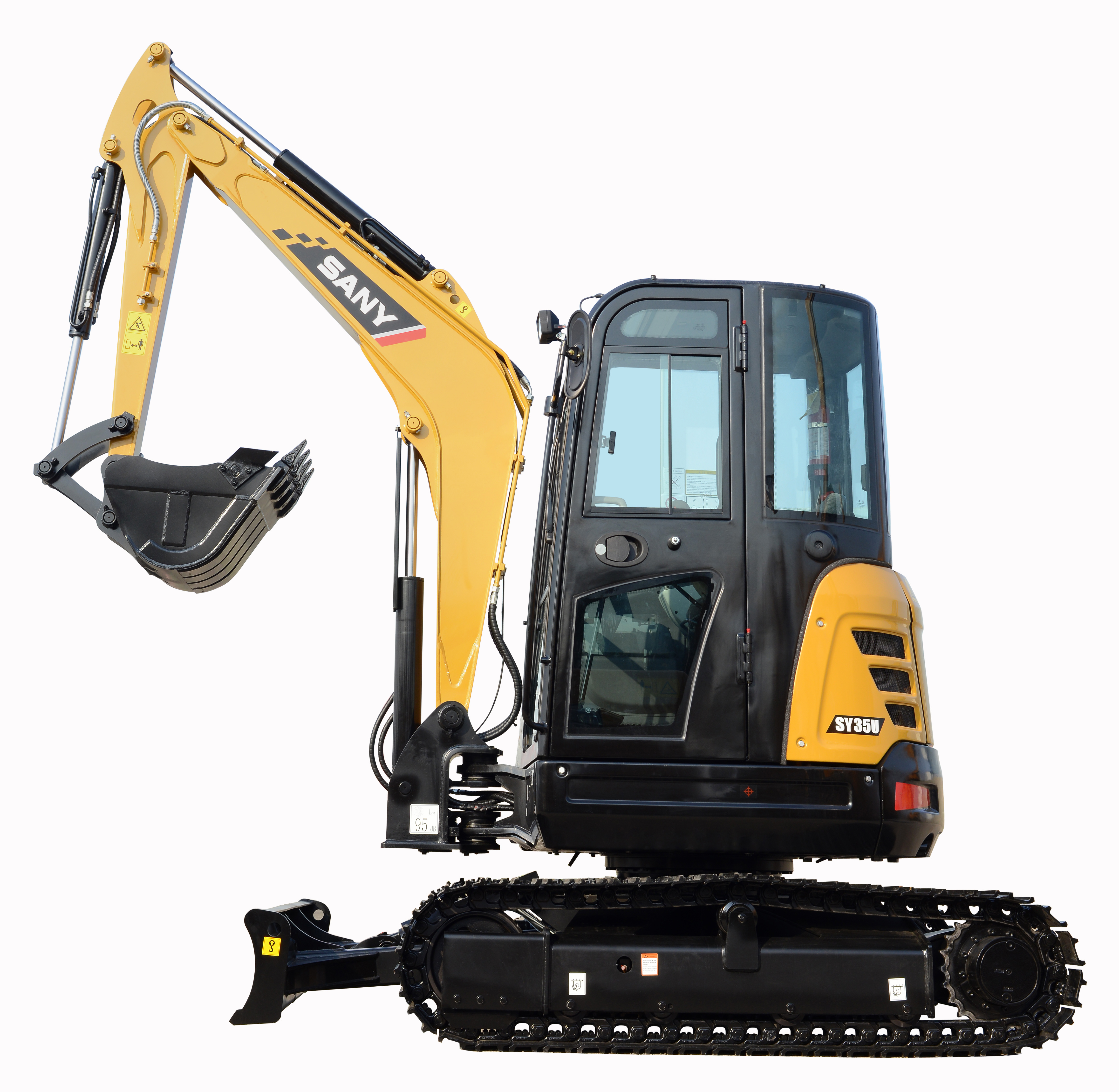

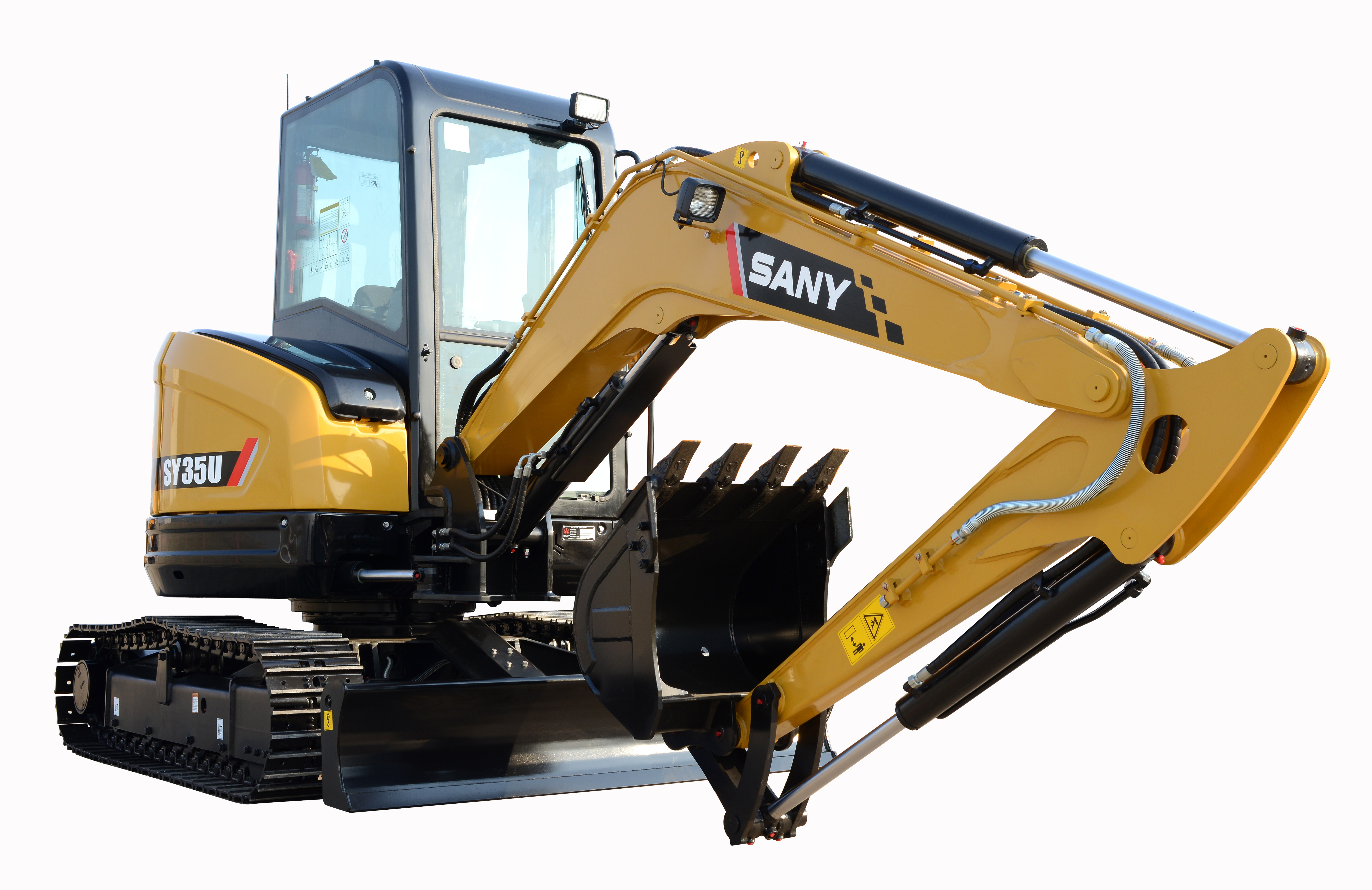

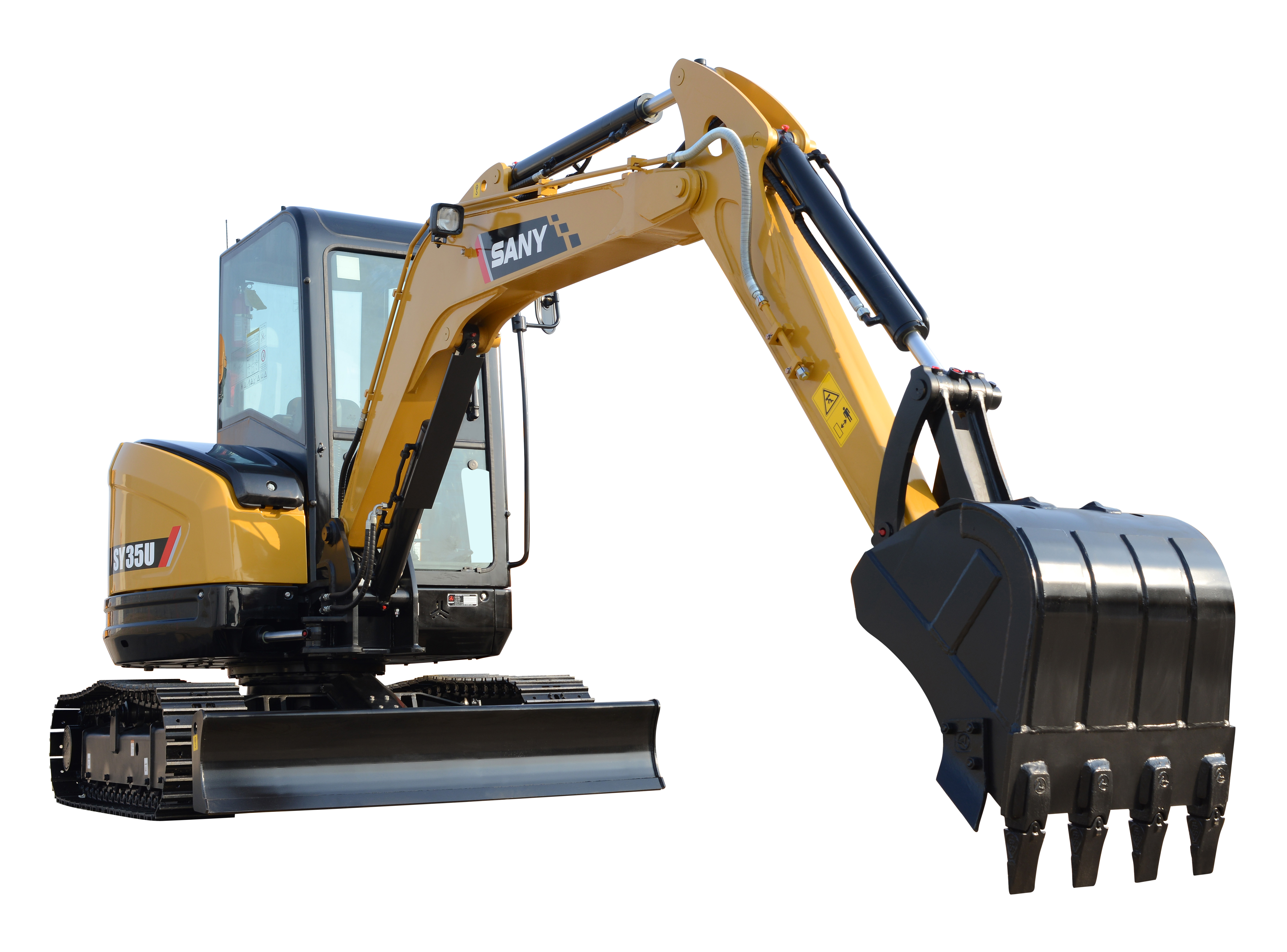

The SANY SY35U short-tail-swing excavator is especially suited to use in confined circumstances. Its robust design and excellent performance data make this machine ideal for all earthmoving and roadbuilding projects.
The SY35U hydraulic excavator features "high reliability, excellent performance, safety, environmental friendliness, comfort, and convenience."
  • Rated Power
    20.4kW/2200rpm
  • Operating Weight
    3,780kg
  • Dig Depth
    3,105mm
Chat with us Leave a message Download
Specifications
Overall length 4,915 mm
Overall width 1,720 mm
Overall superstructure width 1,548 mm
Overall height above cab 2,515 mm
Rear length 860 mm
Track width 1,420 mm
Undercarriage length 2,155 mm
Undercarriage width (dozer blade) 1,720 mm
Blade height 350 mm
Track link width 300 mm
Min ground clearance 295 mm
Tail swing radius 886 mm
Distance (centre) between crawler wheel and guide wheel 1,670 mm
Boom length 2,540 mm
Bucket arm length 1,400 mm
Bucket capacity 0.12 m³

Working range
Max. horizontal reach on the ground 5,465 mm
Max. excavation depth 3,105 mm
Max. vertical reach 4,855 mm
Max. dumping height 3,460 mm
Min. slewing radius 2,420 mm
Max. excavation depth, vertical wall 2,700 mm
Working machine height at min. slewing radius
bei min. Schwenkradius		 3,690 mm

WEIGHT
Total weight 3,855 kg

ENGINE
Model 3TNV88F
Rated power 18.2 kW
Max. torque 94.2 Nm/1,320 rpm
Displacement 1,642 l
Batteries

HYDRAULIC SYSTEM
Main pumps 1 Adjustable axial piston pump
Maximum oil flow 1 x 88 l/min
Travel drive 2 Adjustable axial piston pump
Slewing gear 1 Adjustable axial piston pump

PRESSURE LIMITING VALVE SETTINGS
Boom circuit 245 bar
Slewing circuit 206 bar
Drive circuit 245 bar
Pilot control circuit 35 bar

OUTPUT
Slewing speed 9 rpm
Slewing torque
Max. ground speeds fast 4.5 km/h slow 2.2 km/h
Max. traction force 42,5 kN
Climbing ability 30°
ISO bucket breakaway force 30.4 kN
SAE: PCSA bucket breakaway force
ISO arm tear-out force 18.2 kN
SAE: PCSA arm tear-out force

SERVICE-REFILL CAPACITIES
Fuel tank 40 l
Engine coolant 6.7 l
Engine oil 6.7 l
Travel drive (per side) 0.7 l
Hydraulic system
Hydraulic oil ltank 40 l

Benefits & Features

+ Quiet and low-vibration engine

+ Efficient, powerful load-sensing hydraulic system

+ Responsive, precise control

+ Ergonomic, comfortable seat

+ Clear instruments and a large, high-resolution color display

+ Optimum visibility

+ Powerful automatic air-conditioning and heating system

+ Standard connections for commercially available accessories

+ Low weight and compact dimensions

+ All cladding elements are made of metal.

+ All important maintenance points are very easily accessible.

+ ROPS/FOPS-certified for safety in operation
