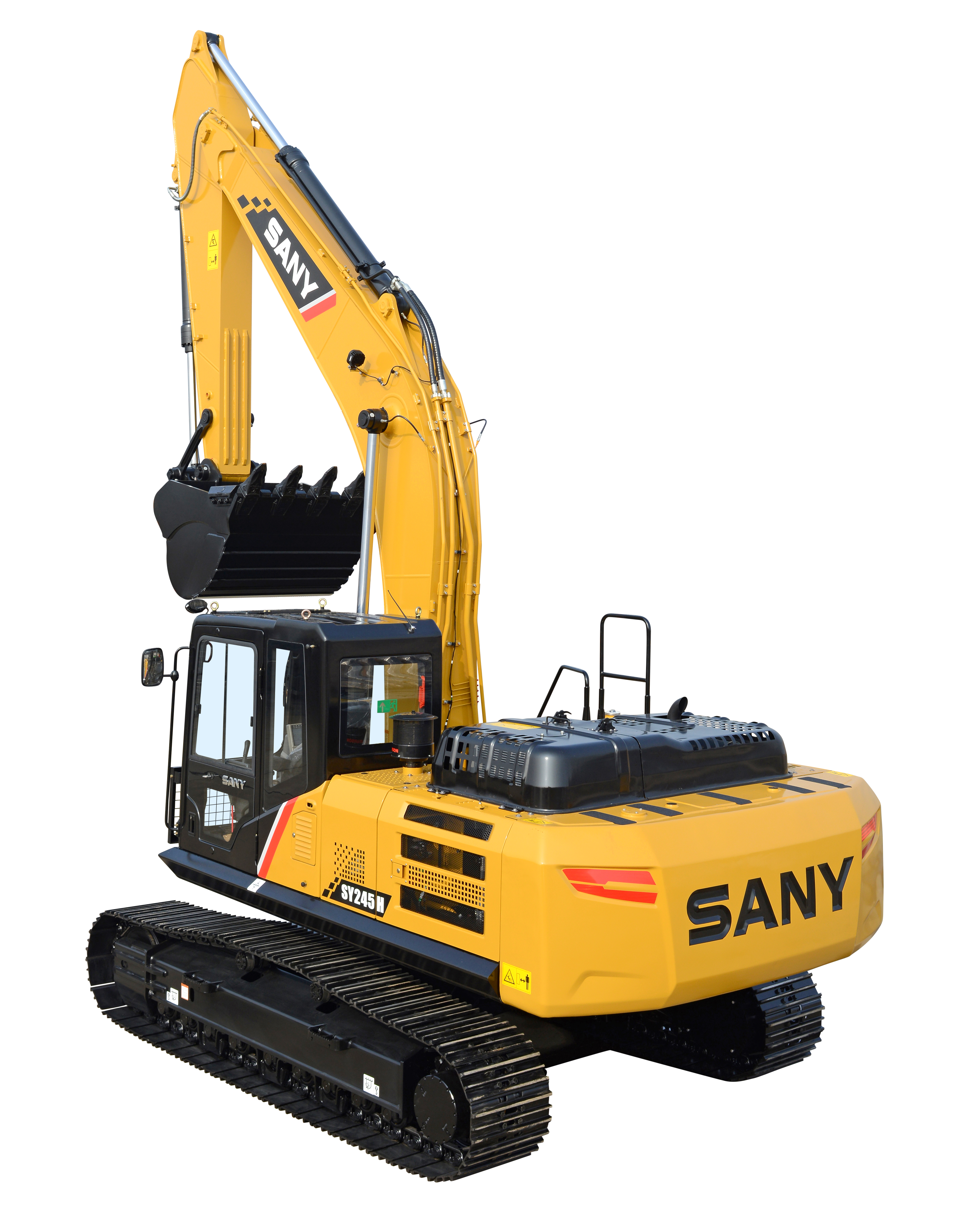

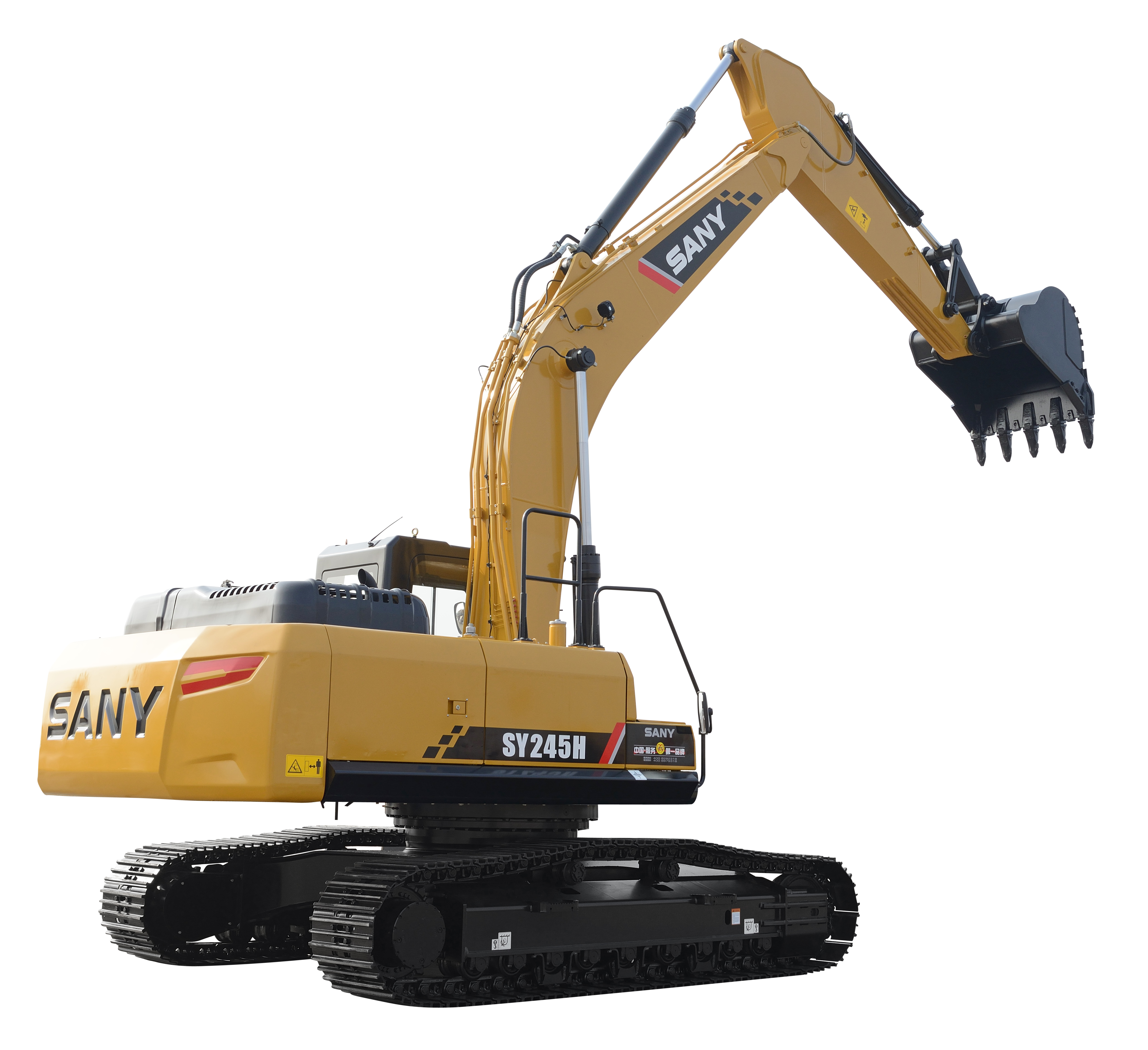

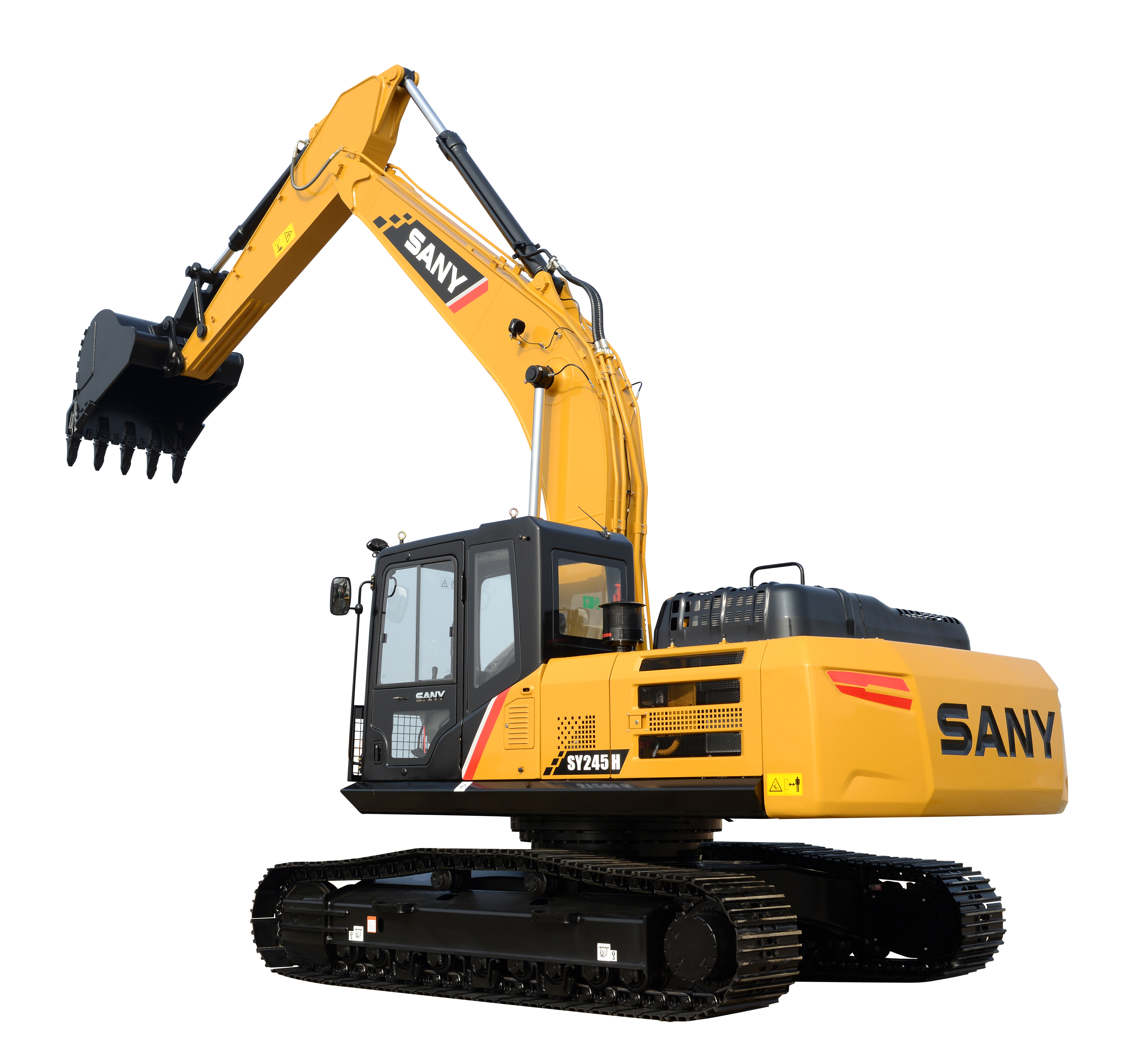

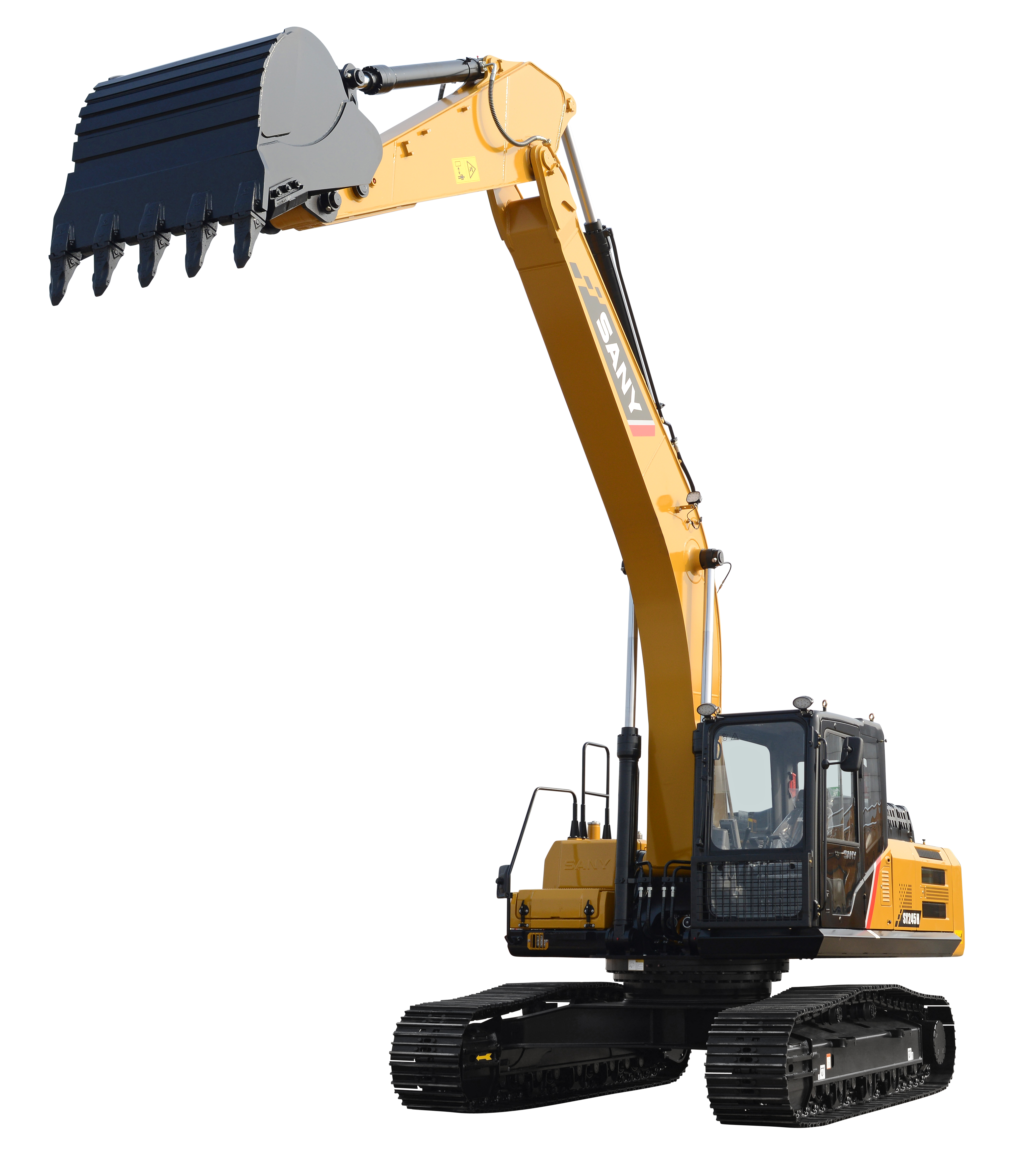

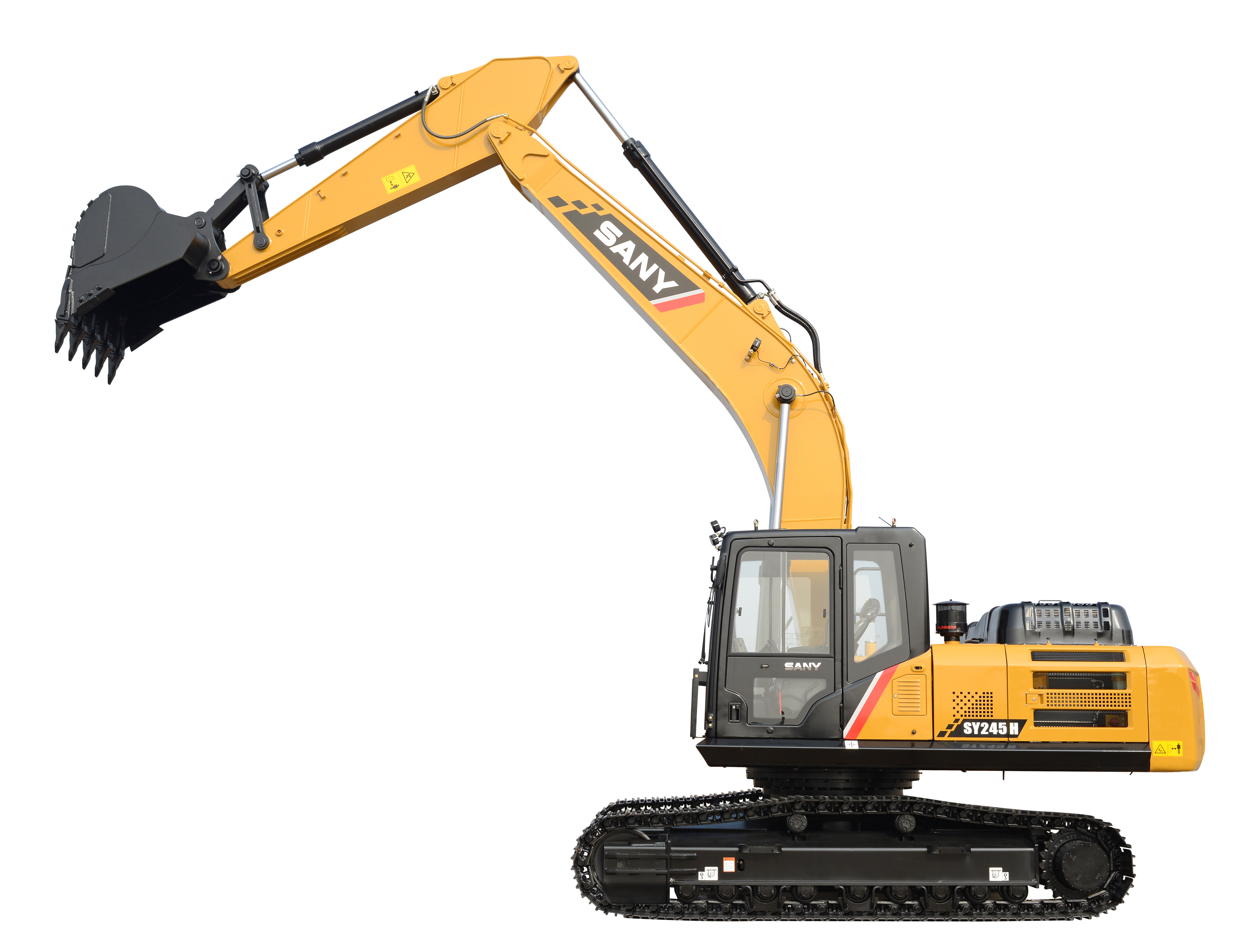

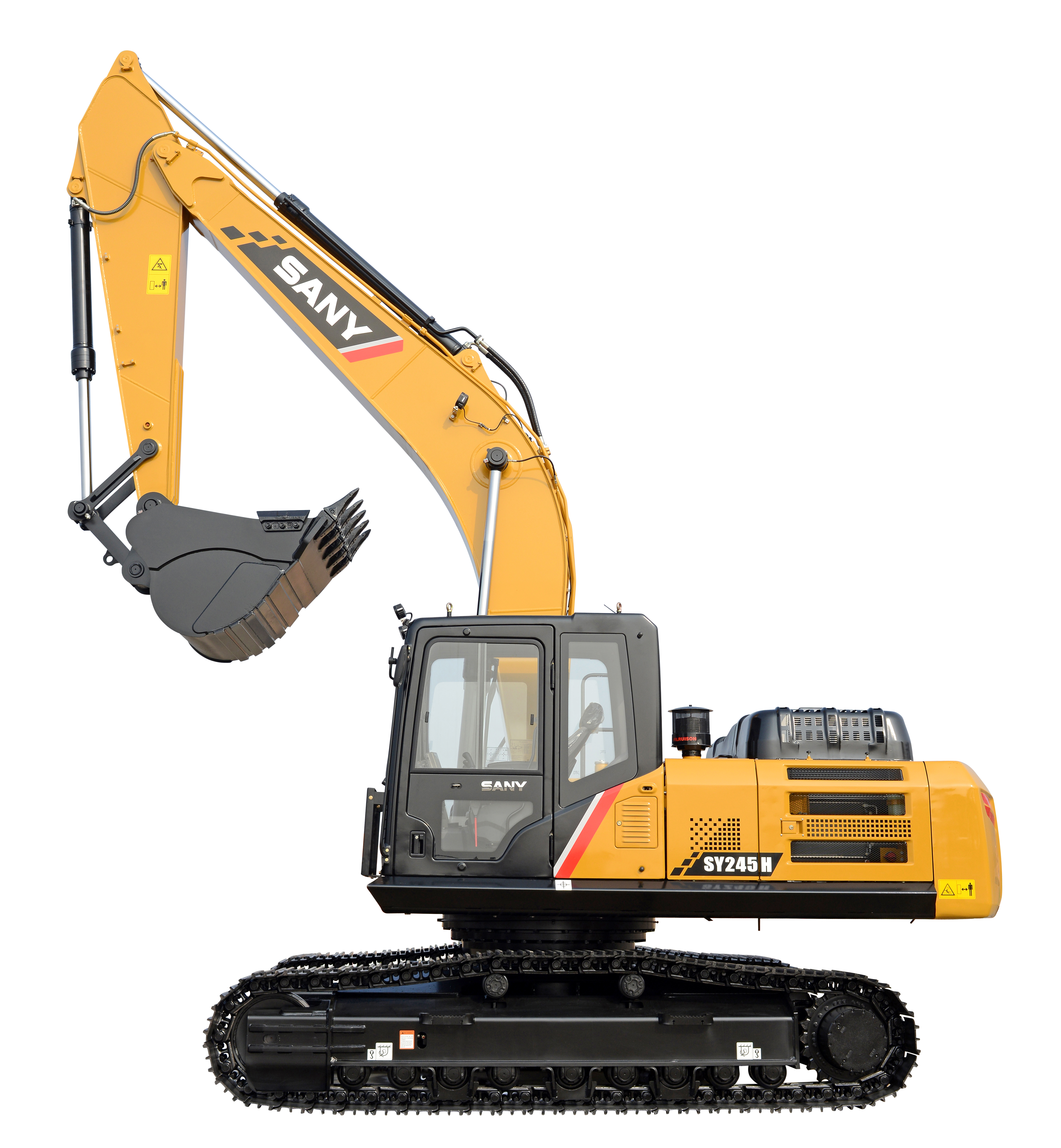

SY245H
25.50 Tonne Excavators
The SANY SY245H offers exceptional lifting force and outstanding productivity. This machine is extremely economical to operate thanks to its very high productivity, exceptional driver comfort and low consumption data.

  • Rated Power
    147kW/2100rpm
  • Operating Weight
    25,500kg
  • Dig Depth
    6,705mm
Specifications
Overall length 10,290 mm
Overall width 3,190 (2,990) mm
Overall superstructure width 2990 mm
Overall height of boom 3,255 mm
Rear length 3,105 mm
Track width 2,590 mm
Undercarriage length 4636 mm
Undercarriage width 3,190  mm
Track shoe 600 mm
Minimum ground clearance 470 mm
Tail swing radius 3,105 mm
Distance (centre) between crawler wheel and guide wheel 3640 mm
Boom length 5,900 mm
Bucket arm length 2,950 mm
Bucket capacity 1.3 m³

WEIGHT
Total weight 25,500 kg

WORKING RANGE
Max. horizontal reach on the ground 10,225 mm
Max. excavation depth 6,705 mm
Max. vertical reach 9,745 mm
Max. dumping height 6,715 mm
Min. slewing radius 3,800 mm
Max. excavation depth, vertical wall 5,675 mm

ENGINE
Model D06FRC
Rated power 147 kW
Max. torque 750 Nm /1,350 rpm
Displacement 6.373 l

HYDRAULIC SYSTEM
Main pumps Adjustable axial piston pump
Maximum oil flow 2 x 246 l/min
Travel drive Adjustable axial piston pumps
Slewing gear Adjustable axial piston pumps

PRESSURE LIMITING VALVE SETTINGS
Boom circuit 343 bar
Slewing circuit 290 bar
Drive circuit 343 bar
Pilot control circuit 39 bar
Powerboost 373 bar

OUTPUT
Slewing speed 10.6 rpm
Max. ground speeds fast 5.5 km/h slow 3.74km/h
Ground pressure 52.5 kPa
Climbing ability 70%/35°
ISO bucket breakaway force 175 kN
ISO arm tear-out force 120 kN

SERVICE REFILL CAPACITIES
Fuel tank 475 l
Engine coolant 30.9 l
Engine oil 29 l
Travel drive (per side) 4,0 l
Hydraulic oil tank 277 l

Benefits & Features

+ Quiet and low-vibration engine
+ Efficient, powerful load-sensing hydraulic system
+ Responsive, precise control
+ Ergonomic, comfortable seat
+ Clear instruments and large, high-resolution colour display
+ Optimum visibility
+ Powerful automatic air-conditioning system and heating
+ Standard connections for commercially available accessories
+ Low weight and compact dimensions
+ All cladding elements made of metal
+ All important maintenance points are very easily accessible
+ ROPS/FOPS-certified for safety in operation

related product

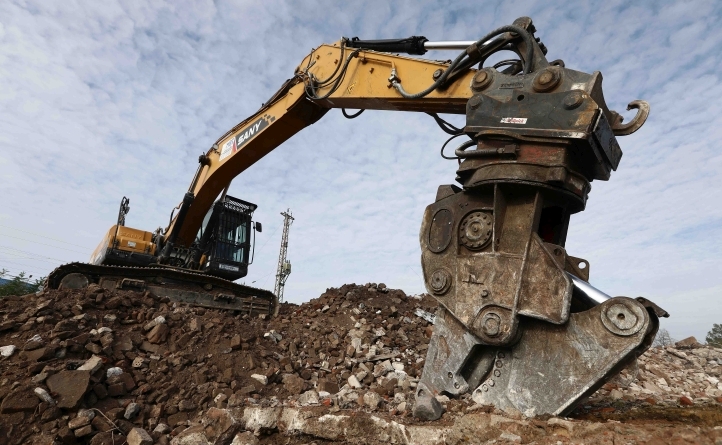

VR HIGHLIGHTS
