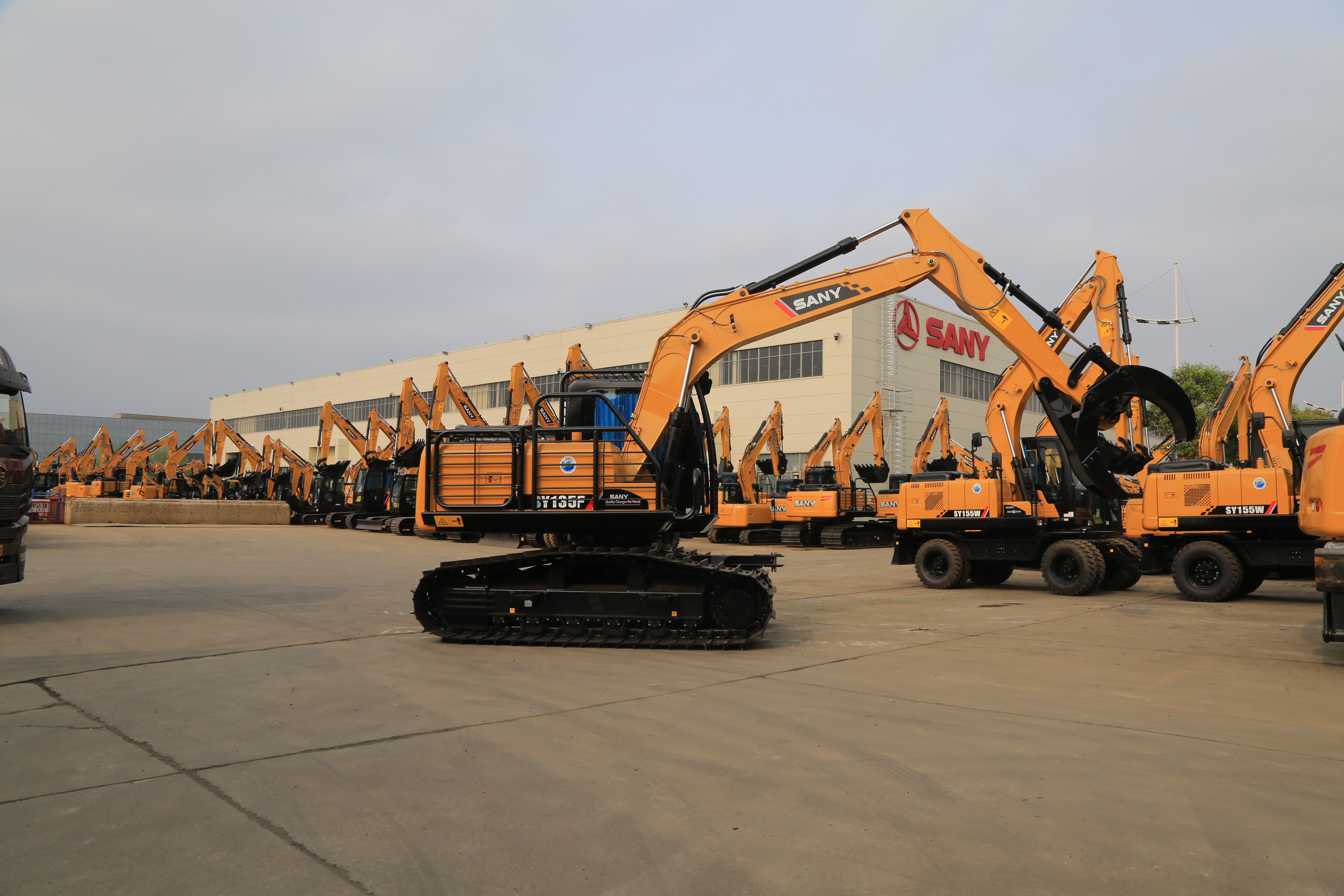

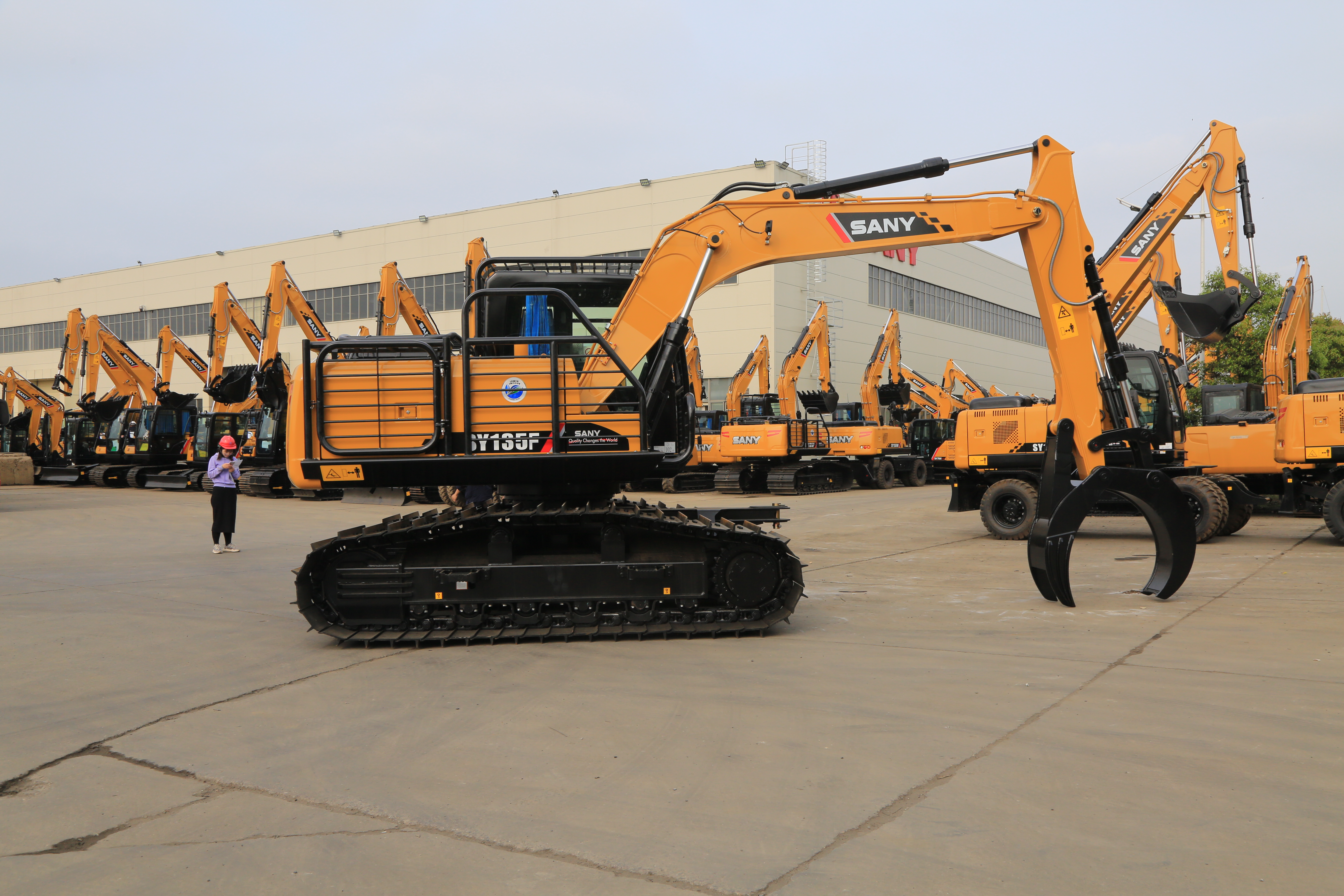

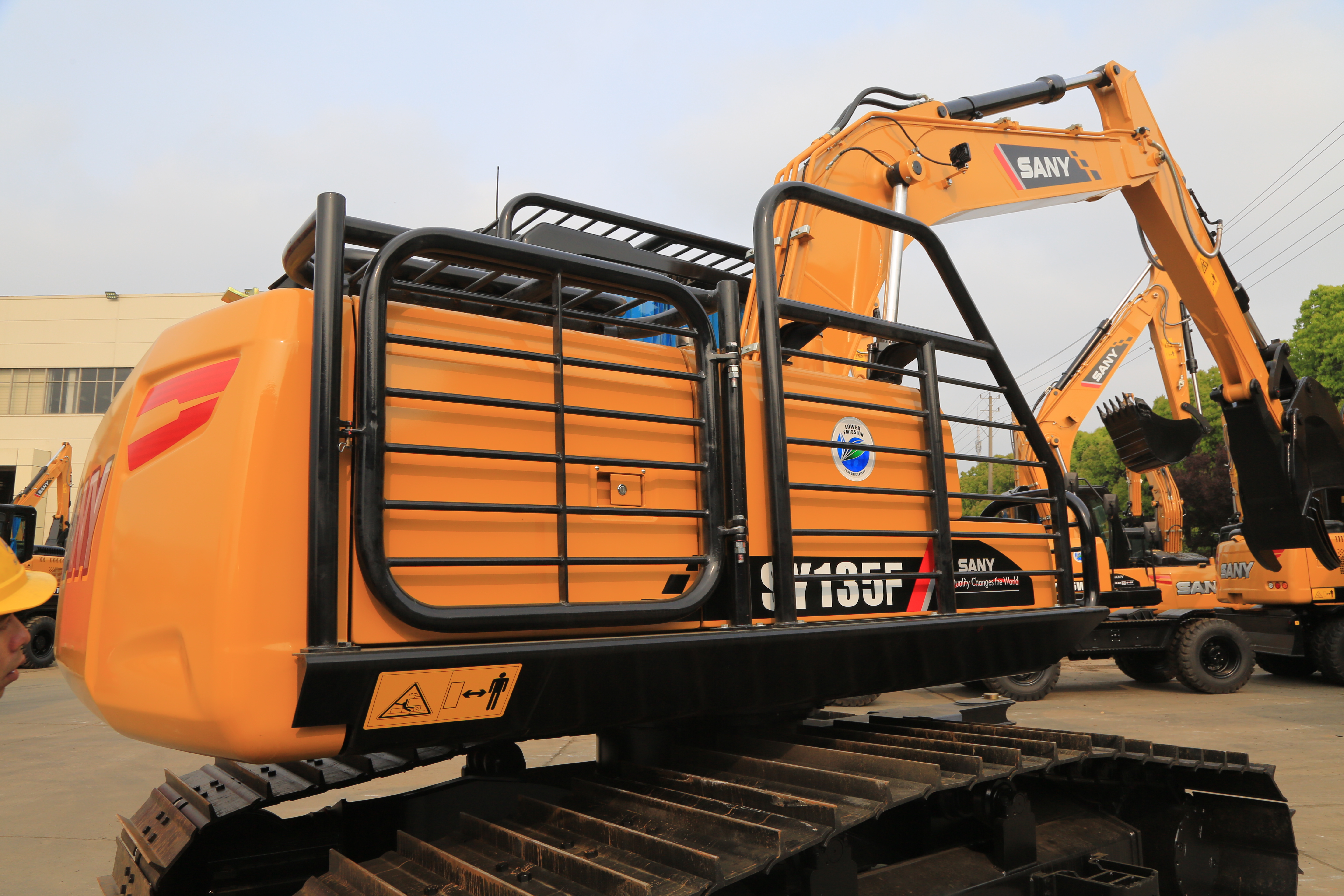

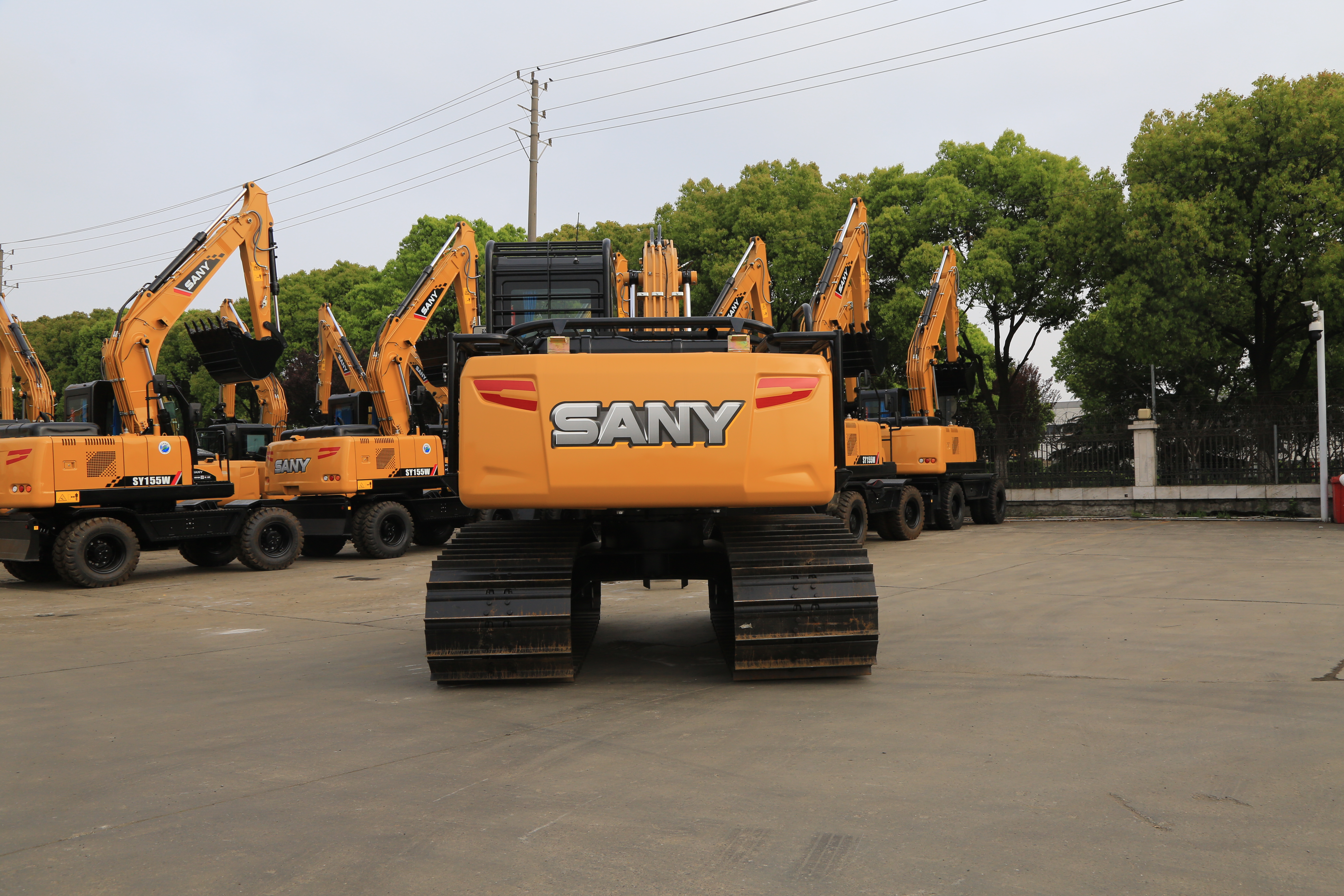

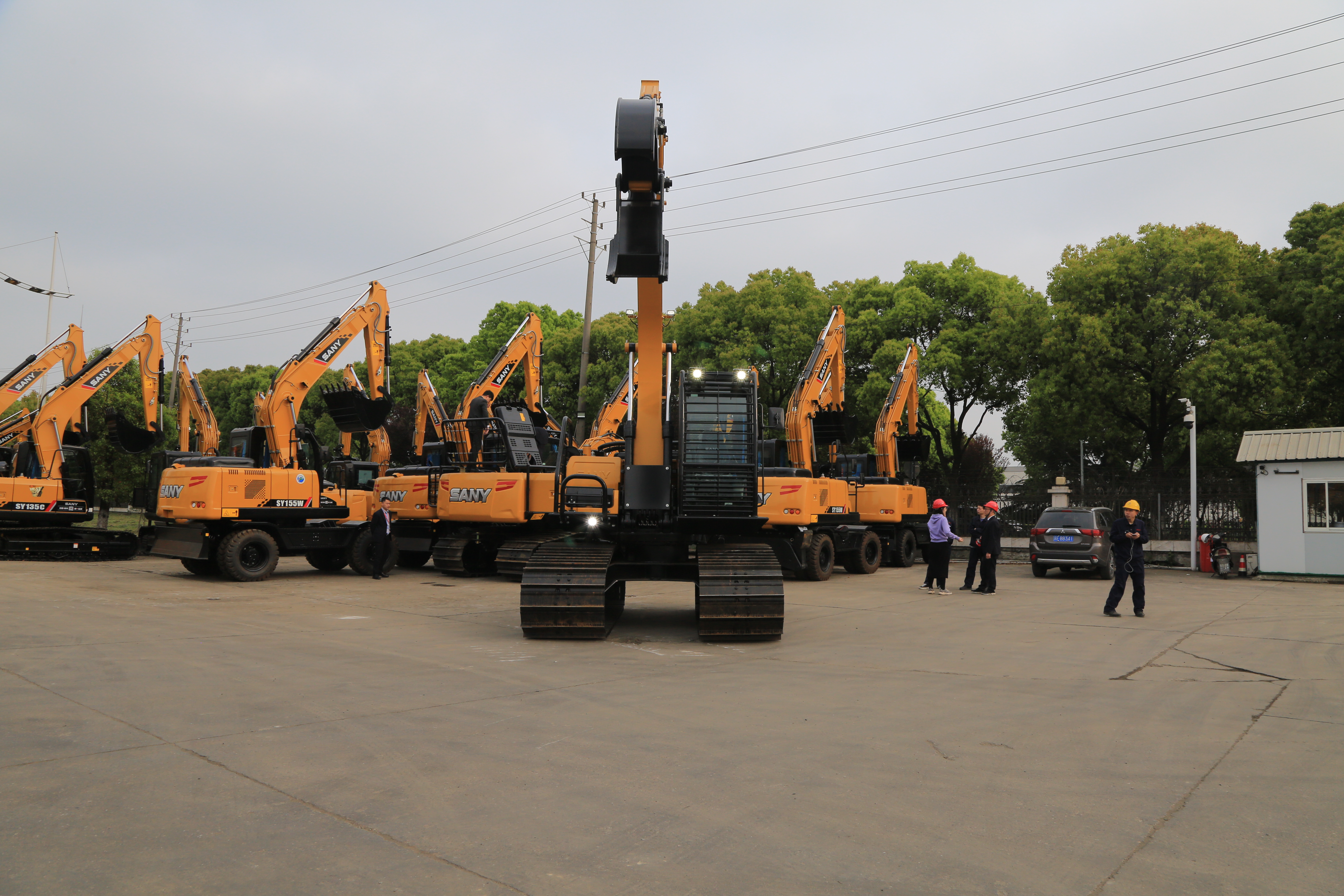

SY135F

13.5 Tonne Excavators

The 13,500kg SY135C is equipped with Isuzu GB3-4JJ1X engine, with output power of 73/2200kW/rpm, greatly increasing the hydraulic power and fuel efficiency. The customized engine for SY135C is configured with four cylinder, four stroke direct-injection turbocharger, providing strong operating power for the machine.

Rated Power

73KW/2000rpm
Operating Weight

13500 kg
Dig Depth

5510mm

Chat with us Leave a message Download

Specifications

Technical data
Overall length	7700 mm
Overall width	2550 mm
Overall height	2815 mm
Upper width	2490 mm
Track length	3665 mm
Track gauge	1990 mm
Tail swing radius	2240 mm
Min.Ground Clearance	425 mm
Track shoe width	500 mm

Boom length	4600 mm
Bucket arm length	2500 mm
Bucket capacity	0.6 m³

WEIGHT
Total weight	13500 kg

WORKING RANGE
Max. digging height	8685 mm
Max. unloading height	6180 mm
Max. digging depth	5510 mm
Max. digging distance	8290 mm
Min. slewing radius	2500 mm
Max. height at min. slewing radius	6500 mm


ENGINE
Model	Isuzu 4JJ1X
Rated power	73 kW/2000 rpm
Travel speed	5.5\3.3 km/h

OUTPUT
Slewing speed	12 rpm
Fuel tank	240 L
Radiator	10 L
Engine oil	15 L
Hydraulic oil tank	150 L

Engine	Engine Model	ISUZU 4BG1-TABGC-03-C2
Engine	Rated Power	ISUZU 4BG1-TABGC-03-C2
Operating Weight	Operating Weight	16800kg
Undercarriage	Track Shoes Number	960mm
Working Range	Max.Digging Height	9185mm
	Max.Digging Depth	5165mm
	Min. Swing Radius	2670mm
	Height at Min. Swing Radius	6805mm

Benefits & Features

High-efficiency

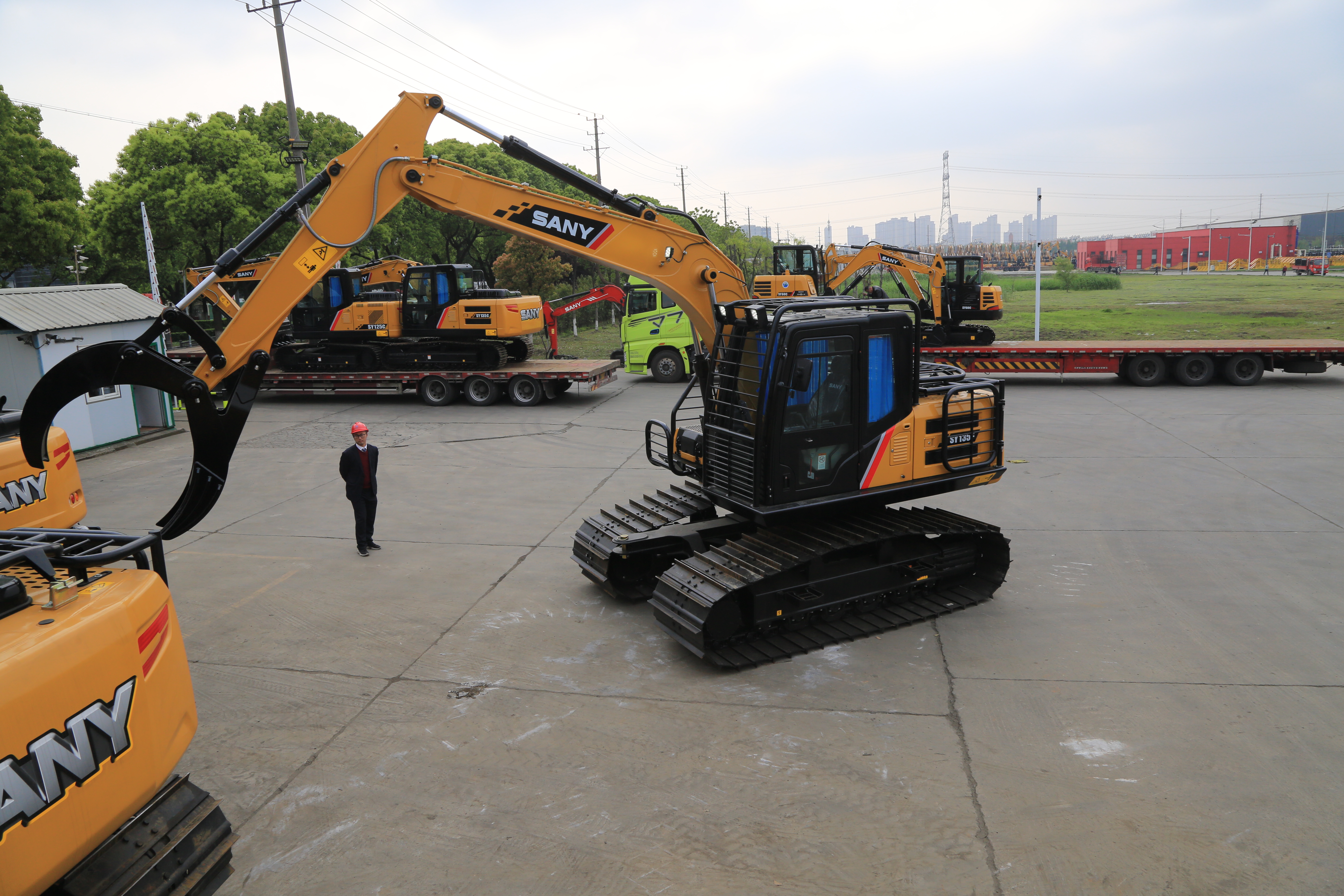

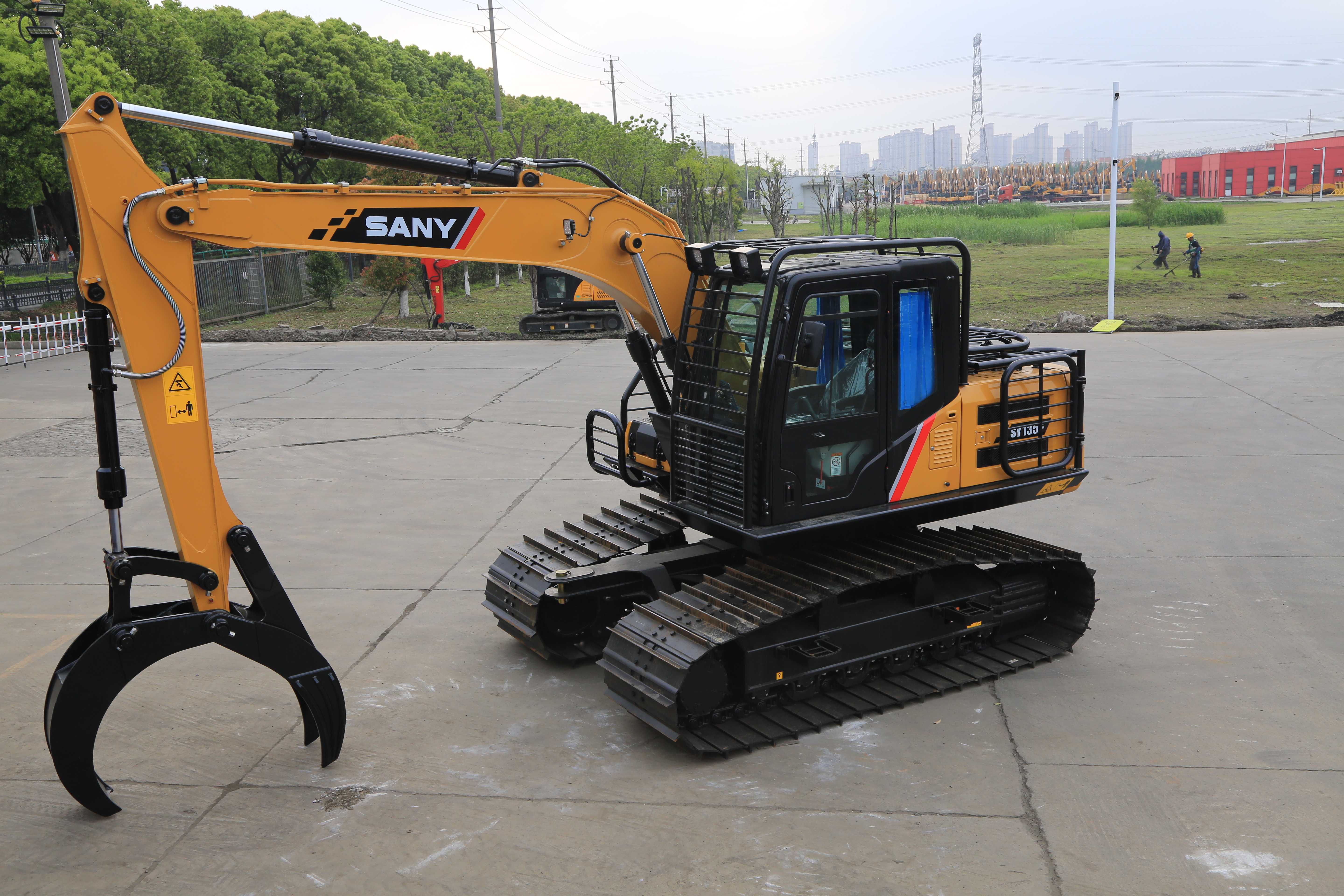

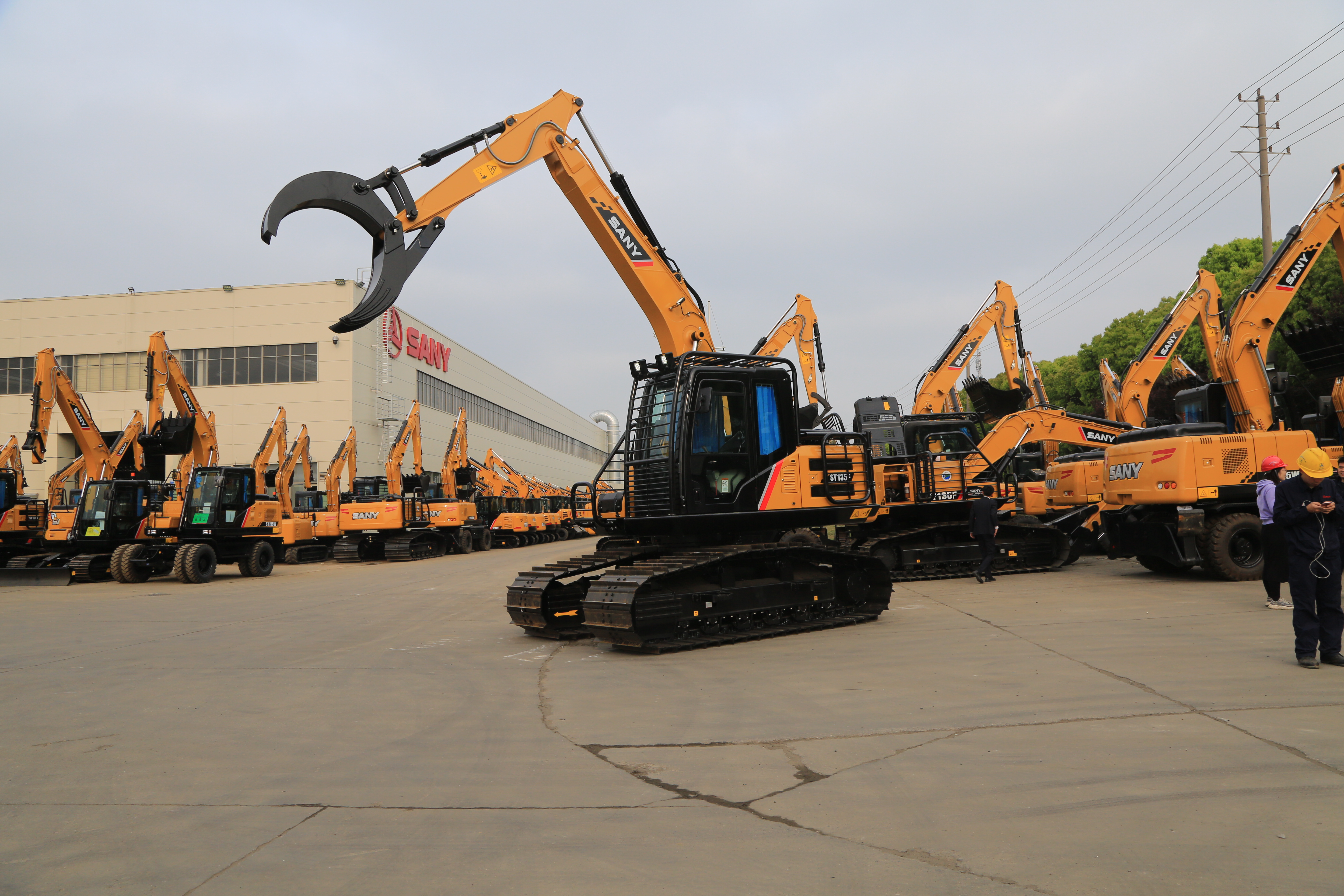

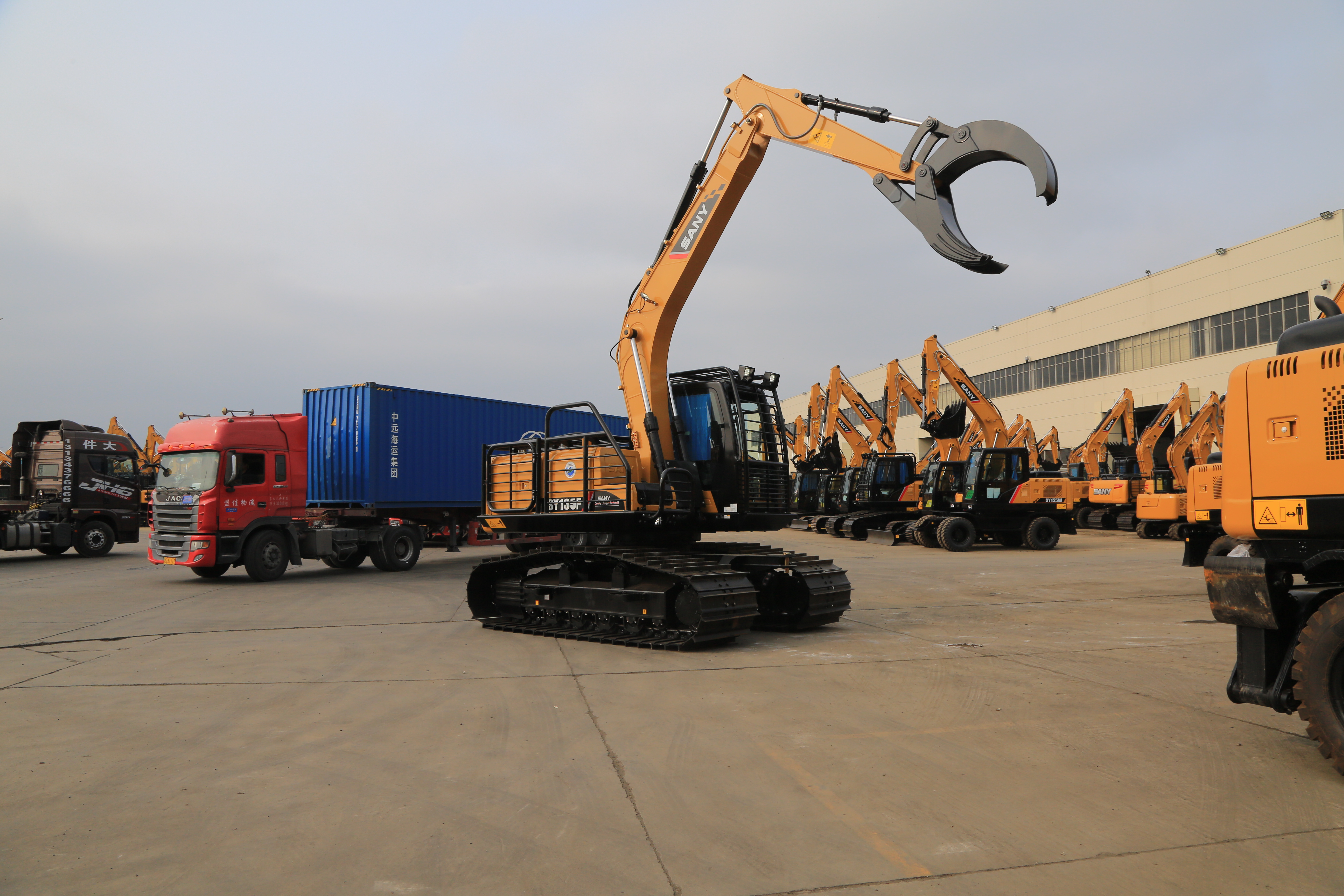

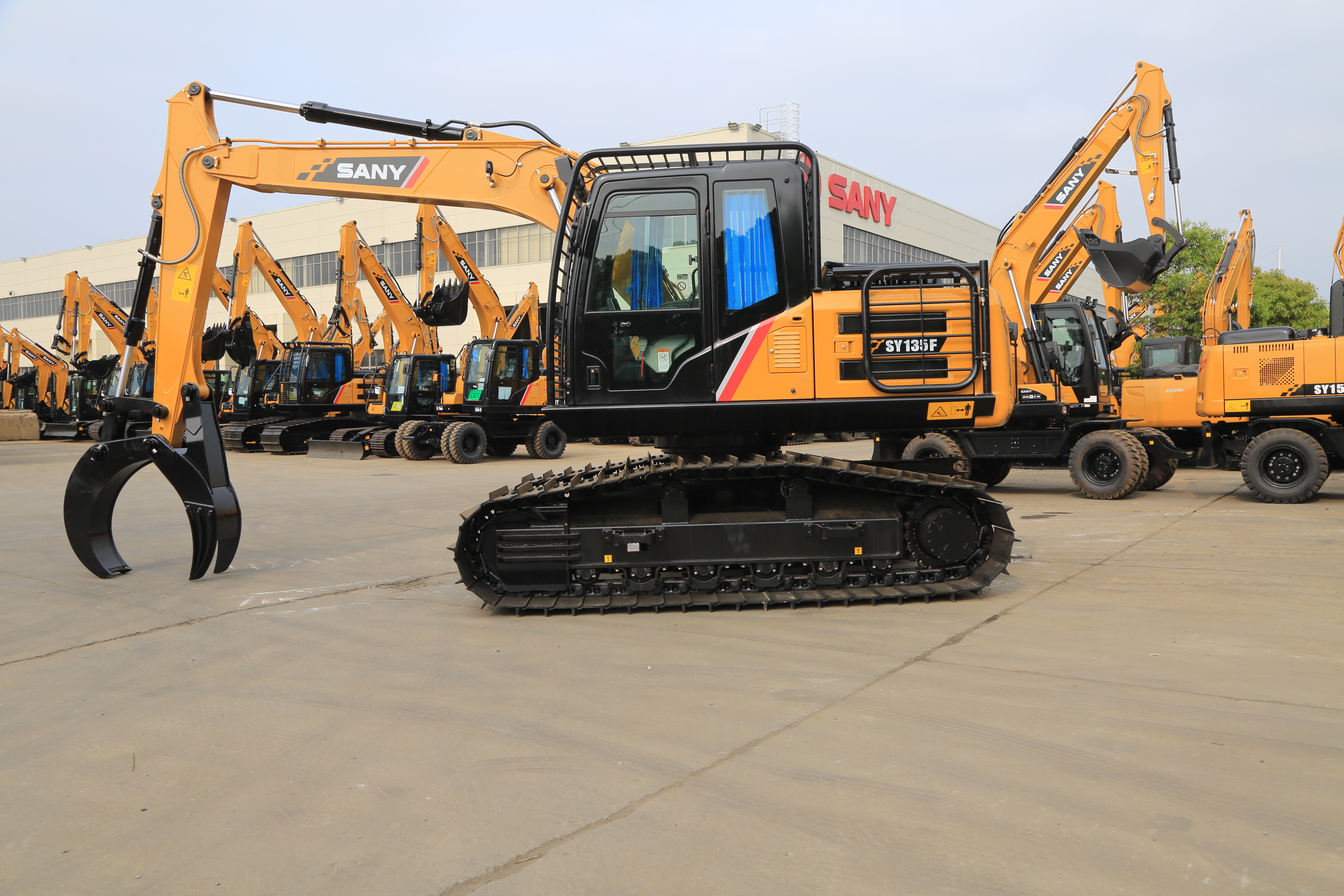

It adds re-generation function according to frequent use of grapple, the grapple closing & opening speed increase 24%.

Reliability

Strengthened under-carriage and platform, reinforced boom and arm, handle tough work conditions better.

Forceful

Top-class drawbar pulling force(154kN), make transfer easier through bad roads and wetlands.

Energy-saving

Globally renowned electrical control hydraulic pump can realize precise flow control based on loading, mapping it with engine real time power and significantly reduces energy consumption
